Home /Products/Rack Mounted Lithium Battery/Solar Energy System With Lithium Battery LiFePO4 Lithium Battery 51.2V 100Ah Home Energy Solar Storage Rack Server Battery 442x490x155mm

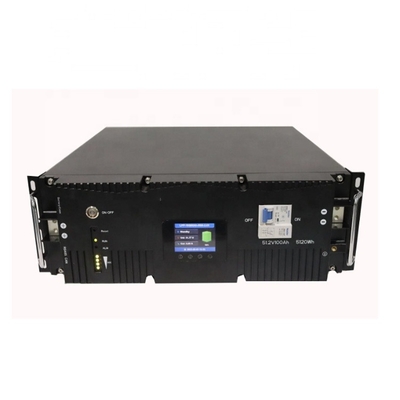

Solar Energy System With Lithium Battery LiFePO4 Lithium Battery 51.2V 100Ah Home Energy Solar Storage Rack Server Battery 442x490x155mm

10 pieces
MOQ
Solar Energy System With Lithium Battery LiFePO4 Lithium Battery 51.2V 100Ah Home Energy Solar Storage Rack Server Battery 442x490x155mm
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Type: Lithium Ion
Model Number: KLASK-020, CLASSICTECH
Output Power Range: 5~10 KWh
Dimension (L*W*H): 442x490x155mm
Weight: 45kg
System Type: Rack-mounted
Type: Split
Communication Port: CAN, RS485, CAN/RS485
Protection Class: IP65
Grid Connection: Off Grid, Hybrid Grid
Battery Size: 442x490x155mm
Battery Weight: 45KGS
Battery Shape: Prasmatic Battery
BMS: Build-in Smart BMS
Battery Case: Case Waterproof Metal Case
Design Life: 15 Years
Warranty: 5 Years
Cycle Life: 6000 Cycle (Dod 80%)
Basic Infomation
Model Number: KLASK-020, CLASSICTECH
Payment & Shipping Terms
Packaging Details: Carton packing & Wooden case packing
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Features :
The battery module consists of single LFP cells, wire, BMS and metal container.
LFP single cell, long life, safety and wide temperature range.
High energy density, small size, light weight, no pollution;
High efficiency, fast charging.
Built-in BMS, protect voltage, current, temperature in whole service life.
Integrated communication interface, communication with inverter controller.
Integrated LED indicator, display the SOC and operating status.
Standardized module, supporting parallel design, matching a variety of inverters.
15 years design life, Stable performance, maintenance-free.
Products Description
Solar Energy System With Lithium Battery LiFePO4 Lithium Battery 51.2V 100Ah Home Energy Solar Storage Rack Server Battery
Basic
Rated voltage
51.2V
Rated capacity
100Ah
Rated energy
5.12KWh
Output voltage range
44.8V~56V
Charging voltage
55.2~56.8V
Cut-off voltage
44.8V
Max. Charging current
100A
Recommended charging current
≤50A
Max. Discharging current
100A
Balance current
150mA
Physical
Dimension L*W*H (mm)
442*490*155  Rack-mounted
Weight(kg)
45
Environment
Humidity
5%~95% Relative humidity
Charging temperature
0ºC~45ºC
Discharging temperature
-20ºC~60ºC
Storage temperature
-20ºC~45ºC
Service Life
>6000 times (0.5C,@25ºC,80%DOD)
Design life
>15 years
Certification
Safety
CE, EMC, TUV (IEC62619,)
Transportation
UN38.3

BMS WORKING

PRINCILPE DIAGRAM

COMMUNIICATION

INTERFACE DIAGRAM
Certifications
Company Profile
R&D STRENGTHS
R&D
Classictech has a very strong R & D team with over 35 people having over 15 years of industry experience includ - ing hardware ,
software engineers , struc - ture design engineers , etc .Providing customized batteries
and professional technical support of high requirement with UL1973,IEC62619, CE - EMC ,UN38.3, MSDS and acquired more than 20 patents , BMS hardware and software research center , which greatly make our clients more competitive and obtain more market shares .
PRODUCTION EQUIPMENTS
FACTORY DISPLAY
FAQ
Q1: Are your factory or trading company?
A: We are professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients,
can produce by your samples or technical drawings. We can build the molds and fixtures.

Q2.Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity applicationetc.

Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. How about your delivery time?
A:Generally, it will take 15-30 days after receiving your advance payment. The specific delivery time depends on the items and thequantity of your order.

Q6. Do you test all your goods before delivery?
A: Yes, We have professional QC team to make sure that the product in good condition before send out the goods.

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
