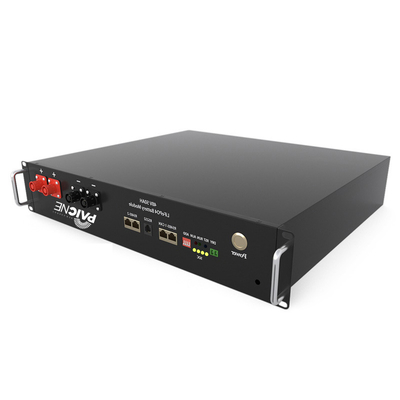

Solar Energy Storage Systems Cabinet Type Rack Mount 5U 48V 150Ah Lifepo4 Battery Lithium Battery Pack Home Use Solar Power Energy Storage System

2 boxes
MOQ
Solar Energy Storage Systems Cabinet Type Rack Mount 5U 48V 150Ah Lifepo4 Battery Lithium Battery Pack Home Use Solar Power Energy Storage System
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Type: LiFePO4
Model Number: PC7200, PC7200
Output Power Range: 5~10 KWh
Dimension (L*W*H): 482*430*222
Weight: 45KG
System Type: Rack-mounted
Type: Split
Communication Port: CAN, RS232, RS485
Protection Class: IP54
Grid Connection: Hybrid Grid
Size: Customized
Certificate: CE/ROHS/MSDS/UN38.3
Battery Type: LiFePO4 Lithium Batteries
Storage Temperature: -20℃~60℃
OEM/ODM: Welcomed
Cycle Life: 6000 Cycle @ 100% DOD, 80% Capacity Remain
Application1: Solar Energy Storage Systems
Application2: Uninterruptible Power Supplies
Basic Infomation
Certification: CE/ROHS/MSDS/UN38.3
Model Number: PC7200, PC7200
Payment & Shipping Terms
Packaging Details: Multilayer carton
Supply Ability: 500 Box/Boxes per Day
Product Description
Product Description
Specification
Model Number
PC2400
PC2000
PC3000
PC5000
PC7200
PC10000
Norminal Battery Energy
2.40KWH
2.56KWH
3.84KWH
5.12KWH
7.68KWH
10.24KWH
Norminal Capacity
50Ah
50Ah
75Ah
100Ah
150Ah
200Ah
Norminal Voltage
48V
51.2V
51.2V
51.2V
51.2V
51.2V
Dimensions (mm)
2U 482x410x89
3U 482x350x132
3U 482x350x132
4U 482x400x177
5U 482x430x222
6U 482x500x280
Internal Resistance
≤30mΩ
Cycle Life
>6000
Months Self Discharge
<3%
Charge Data
DC Normal Charge Voltage
58.4±1Vdc
Charge Mode
0.2C to 58.4V, then 58.4V charge current to 0.02C (CC/CV)
Recommended Charger Current
<20A
Allowed Max.Charge Current
25A
50A
Charge Cut-off Voltage
54.7±1Vdc
58.4±1Vdc
Discharge Data
Continuous Discharge Current
25A
50A
Allowed Max. discharge current
50A
100A
Discharge cut-off voltage
38V
40V
Working Condition
Charge Temperature
0'C to 45'C (32°F to 113°F)
Discharge Temperature
-20° C to 60°C(4°F to140°F)
Storage Temperature
0°C to 40°C(32°F to 104°F)
Enclosure Protection Level
IP54
Mechanical Data
Cell&Capacity
25AH&50AH
25AH&75AH
50AH&100AH
50AH&150AH
50AH&100AH
Case material
Iron Rack Mount Case
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
