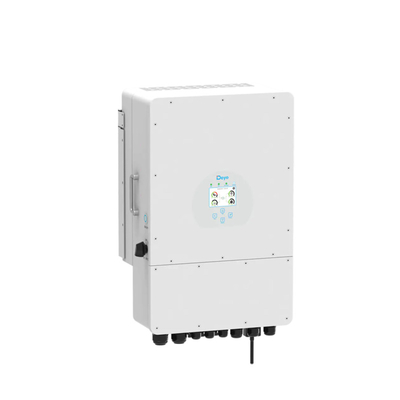

European version 12kw 14kw 16kw wall mounted hybrid inverter deye sun-16k-sg01lp1-eu hybrid solar inverter

1 piece
MOQ
European version 12kw 14kw 16kw wall mounted hybrid inverter deye sun-16k-sg01lp1-eu hybrid solar inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SUN--12KW-14kw-16kw
Input Voltage: 370V
Output Voltage: 230Vac
Output Current: 26A
Output Frequency: 50/60Hz
Output Type: Single
Size: 464X798.4X300mm
Type: DC/AC Inverters
Inverter Efficiency: 97.60%
Certificate: CE/TUV
Warranty: 5 Years
Weight: 48.5kg
Product Name: SUN-12K-SG01LP1-EU
Color: White
Display: LCD
Operating Temperature Range (℃): -40~60℃, >45℃ Derating
Protection Degree: IP65
Installation Style: Wall-mounted
Communication With BMS: RS485; CAN
Noise(dB): <30dB
Basic Infomation
Certification: CE/TUV
Model Number: SUN--12KW-14kw-16kw
Payment & Shipping Terms
Packaging Details: 1. Individual box packaging 2. Large quantities can be packed in wooden pallets or cartons 3. Packaging can be customized according to customer needs
Supply Ability: 5000 Piece/Pieces per Week
Product Description
Product Description
Specification
Model
SUN-12K-SG01LP1-EU
SUN-14K-SG01LP1-EU
SUN-16K-SG01LP1-EU
Battery Input Data
Battery Type
Lead-acid or Lithium-ion
Battery Voltage Range(V)
40~60V
Max. Charging Current (A)
220A
250A
290A
Max. Discharging Current (A)
220A
250A
290A
Charging Curve
3 Stages / Equalization
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
15600W
18200W
20800W
Max. DC Input Voltage (V)
500V
Start-up Voltage (V)
125
MPPT Range (V)
150-425
Rated DC Input Voltage (V)
370V
PV Input Current (A)
26+26+26
26+26+26
26+26+26
Max. PV I (A)
44+44+44
No.of MPPT Trackers
3
No.of Strings Per MPPT Tracker
2
2
2
AC Output Data
Rated AC Output and UPS Power (W)
12000W
14000W
16000W
AC Output Rated Current (A)
54.5/52.2
63.6/60.9
72.7/69.6
Max. Continuous AC Passthrough (A)
100
Peak Power (off grid)
2 times of rated power, 5 S
Power Factor
0.8 leading to 0.8 lagging
Output Frequency and Voltage
50/60Hz; L/N/PE 220/230Vac (single phase)
Grid Type
Single Phase
Total Harmonic Distortion (THD)
<3% (of nominal power)
DC current injection
<0.5% In
Backup Data
Backup Power (W)
10000
12000
14000
Backup Rated Current (A)
45.5/43.5
54.5/52.2
63.6/60.9
Backup UPS
6ms Automatic switchover time
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
96.5%
MPPT Efficiency
99.90%
Packaging & Shipping

Our Services
Company Information

Hunan Heda E-Commerce Co., Ltd., it is a professional engaged in the research, development, sale and service of BIPV, Solar Tiles High-eff Solar Poly and Mono modules, Solar System solutions and etc. The factory is located in Hunanconvenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced avaliable to discuss your requirments and ensure full customer satisfaction. In addition, we have obtained TUV, UL, SGS and CQC certificaites, Tuv selling well in all citied and provinces around China, our products are also exported to clients in such countries and regions as European US, Africa, Middle East, South East Asia and so on.

FAQ

A: What are your main products?
We mainly provide solar panels, inverters, controllers, solar panel optimizers and all solar related accessories

B: Can you support OEM and provide product certification?
Yes, we can provide OEM and product certification services for customers

C: Can you print our company's logo on the nameplate and package?
Yes, we can do it according to your design.

D: How long is the delivery time?
After receiving the deposit, the goods will be delivered within 7-15 days.

E: How do you carry out quality control?
Quality first. We have a professional quality control team to strictly control the quality. The final inspection shall always be carried out before shipment. Only when the quality meets the requirements can it be packaged and delivered from the factory.

F: What are our advantages?
The price is cheap. We have a certain price advantage in batch procurement and factory procurement. The delivery time is short, and the goods can be delivered within one week after receiving the payment. Many brands, various brands, various categories. One-stop, you only need to face one of our suppliers, saving you a lot of energy and time

G: What transactions do we support?
Accepted delivery conditions: FOB, CFR, CIF, EXW, DDP, DDU
Accepted payment currency: US dollar, Euro, Japanese yen, Canadian dollar, Australian dollar, Hong Kong dollar, British pound, RMB, Swiss franc;
Accepted payment type: T/T, L/C, D/P D/A, quick remittance, credit card, PayPal, Western Union remittance, cash
