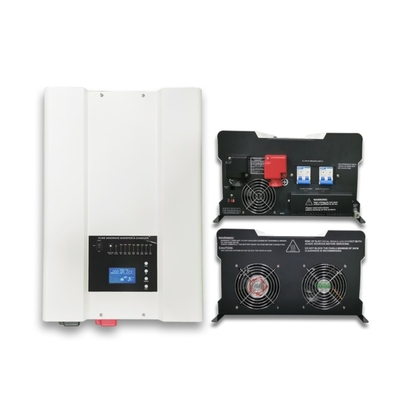

The new 2022 2kw Battery-free Inverter For Off-grid Solar Power Generation System

100 pieces
MOQ
$290.00(>=100 pieces)
Price
The new 2022 2kw Battery-free Inverter For Off-grid Solar Power Generation System
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: HSPV
Input Voltage: 12.0Vdc / 24.0Vdc
Output Voltage: 100-110-120Vac / 220-230-240Vac
Output Current: 30A-120A
Output Frequency: 50 Hz/60Hz
Size: 340*420*200mm
Type: DC/AC Inverters
Inverter Efficiency: >88%
Warranty: 2 Year
Weight: 70.5
Basic Infomation
Model Number: HSPV
Payment & Shipping Terms
Product Description
Products Description
HS-pv series-Solar power frequency inverter control integrated machine

product description:

HS-PVThis series of products use high-efficiency transformers (optional), built-in solar MPPT controller optional (30A-120A), and complementary with mains, solar priority mode, users can set the charging mode according to the use environment,Product integrated management has the advantages of high conversion efficiency, impact resistance, and strong load capacity. Users only need external solar modules and batteries to form an off-grid power generation system.HS-PV is a multi-functional and intelligent inverter control all-in-one machine. It is currently thehighest-end product in industrial frequency inverters..

Product features:

1.Pure sine output is suitable for various loads. It can be used with mixed power supply such as mains/diesel generators Automatic switching of 2. 5 functions: mains bypass, mains charging, solar charging, inverter, UPS 3. Built-in MPPT/solar charge controller (controller power 40/60A/80A/120A optional) 4. Contains relay switching and AC/DC circuit breaker, with multiple protections such as undervoltage /overvoltage/short circuit/overload/over temperature 5. DIP switch selection: battery undervoltage point, input AC range, energy saving mode, output frequency, priority mode 6. The efficiency is 3~5% higher than the ordinary power frequency series, and the self-consumption is reduced by 30%~50% 7. Professional off-grid solar system solutions (optional) 8. Remote control RJ11/RJ45 and RS232/485 interface remote control panel (optional) 9. Pure sine wave series inverters are suitable for renewable energy systems, solar photovoltaic systems, vehicles, ships,Marine and emergency applications.
Model HS-PV
1.0KW
2.0KW
3.0KW
4.0KW
5.0KW
6.0KW
8.0KW
10.0KW
12.0KW
rated power
1.0KW
2.0KW
3.0KW
4.0KW
5.0KW
6.0KW
8.0KW
10.0KW
12.0KW
Peak power
(2 seconds)
3.0KW
6.0KW
9.0KW
12.0KW
15.0KW
18.0KW
24.0KW
30.0KW
36.0KW
Output voltage waveform
Pure sine wave (mains or generator)
Rated efficiency
>88%(Peak)
Online mode efficiency
>95%
Power factor
0.9-1.0
Rated output voltage
100-110-120Vac / 220-230-240Vac
Output frequency
50Hz ± 0.3Hz/60Hz ± 0.3Hz
Short circuit protection
Yes, protection after 1 second short circuit
Typical switching time
10ms (maximum)
Total harmonic distortion
< 10%
Rated input voltage
12.0Vdc / 24.0Vdc
/ 48.0Vdc
24.0Vdc / 48.0Vdc
48.0Vdc/60.0Vdc/72.0Vdc
Minimum starting voltage
10.0Vdc / 10.5Vdc for 12Vdc Mode

*2 for 24Vdc,*4 for 48Vdc*5
60VdcVdc *6 72Vdc
Low battery voltage alarm
10.5Vdc / 11.0Vdc for 12Vdc Mode
Low voltage cut out
10.0Vdc / 10.5Vdc for 12Vdc Mode
High voltage cutting
16.0Vdc for 12Vdc Mode
Low voltage recovery
15.5Vdc for 12Vdc Mode
The output voltage
Depends on battery type
Charging circuit breaker specifications
15A
20A
30A
40A
40A
40A
50A
80A
80A
Maximum charging current
See detailed table
Starting voltage
10.5-15.7Vdc for
12Vdc Mode
*2 for 24Vdc, *4 for 48Vdc;*6 72Vdc
Overcharge protection shutdown point
more than the 15.8Vdc for 12Vdc Mode
Rated input voltage
100-110-120Vac / 220-230-240Vac
Maximum input voltage
150VAC For 120Vac LV Mode；300VAC For 230Vac HV Mode；
Rated input frequency
50Hz or 60Hz
Low frequency cut out
47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
High frequency cut out
55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
Overload protection
yes
Output short circuit protection
yes
Maximum bypass current
30Amp
40Amp
80Amp
Solar system voltage
MPPT12V/24V/36V/48V automatic recognition
Open circuit voltage of photovoltaic panel
18～150Vdc@12V 35～150Vdc@24V 60～150Vdc@48V
Rated charging current
30A-120A (optional)
Charging efficiency
97.6%
Rechargeable battery type
Valve-regulated lead-acid battery Gel battery Lithium battery
charging method
Four-stage charging: constant current charge, constant voltage charge, float charge, equal charge
safety protection
Solar panel short circuit protection, overcharge protection, over discharge protection, overload protection
Install
Wall mount
Inverter size (length * width * height)
340*420*200mm
425*375*200mm
560*420*235mm
655*490*240mm
Inverter shell size (length * width * height)
415*440*300mm
500*495*300mm
660*470*310mm
720*470*290mm
Net weight of inverter with solar rear KG
16
20
26.5
31.5
33.5
37.5
56.5
58.5
61.5
Package includes solar rear unit net weight KG
19
29.5
38
40
44
63.5
66
68.5
70.5
show
Status LEDs / Status LEDs+LCD
Standard warranty
2 year
