Home /Products/On Grid Solar Inverters/Solar Power System Home Sacolar LCD Display Solar Inverters 3kw 50 60hz Single Phase Hybrid Off Grid Solar Inverter 3KVA 24V for solar systems

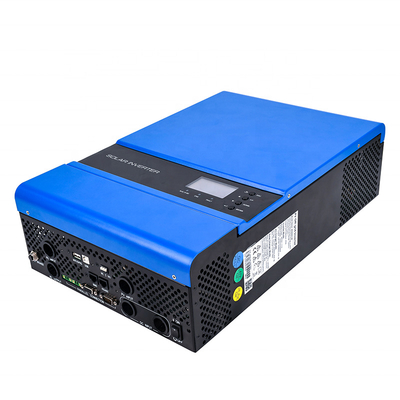

Solar Power System Home Sacolar LCD Display Solar Inverters 3kw 50 60hz Single Phase Hybrid Off Grid Solar Inverter 3KVA 24V for solar systems

1 piece
MOQ
Solar Power System Home Sacolar LCD Display Solar Inverters 3kw 50 60hz Single Phase Hybrid Off Grid Solar Inverter 3KVA 24V for solar systems
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: M3000H-24LV
Input Voltage: 24Vdc
Output Voltage: 230VAC ± 5%
Output Current: Load
Output Frequency: 50Hz/60Hz
Output Type: Single
Size: 470*320*135mm
Type: DC/AC Inverters
Inverter Efficiency: 93%
Certificate: CE
Warranty: 2 Years
Weight: 15KG
Product Name: Hybrid Off Grid Solar Inverter 3KVA
Application: Solar Power System Home
Inverter Type: Off-grid Power Inverter
Protection: Short Circuit Overload Overvolt Overtemp
Display: LCD
Communication: RS485/WiFi/GPRS(Optional)
Keyword: Pure Sine Wave Power Inverter With Charger
Color: Blue
Name: 3kw 24v Hybrid Inverter For Solar Systems
MPPT Efficiency: 93%
Basic Infomation
Certification: CE
Model Number: M3000H-24LV
Payment & Shipping Terms
Product Description
Products Description

MAIN FEATURES:

1. Rated power 2KW to 5KW, power factor 1
2. Built-in MPPT solar charge controller
3. High frequency inverter with small size and light weight
4. Pure sine wave AC output
5. Overload, short circuit and deep discharge protection
6. Configurable AC/ solar input priority via LCD setting
7. Compatible to mains voltage or generator power
8. With CAN/RS485 for BMS communication
9. WIFI/ GPRS remote monitoring (optional)
10. Parallel operation available for 4KW/5KW (optional)
Model
Sunicorn-MHP 3000
Battery Voltage
24VDC
Monitorinig Option
WiFi/GPRS
Inverter Output
110/120AC
Rated Power
3000VA/ 3000W
Parallel Capability
Yes, 6 units
AC Voltage Regulation (Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
10000VA
Efficiency (Peak)
90%
Waveform
Pure Sine Wave
Mppt Solar Charger
60-115VDC
Maximum PV Array Power
2250W
MPPT Range Operating Voltage
60VDC ~115VDC
Maximum PV Array Open Circuit Voltage
145VDC
Maximum Solar Charge Current
80A
Maximum Efficiency
98%
AC Charger
110/120AC
Max. AC Charge Current
60A
AC Input Voltage
65-140VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
AC Bypass
Transfer Time
10 ms (For Personal Computers); 20 ms (For Home Appliances)
Physical
Dimension, D x W x H (mm)
455x295x130
Net Weight (kg)
11.5
Operating Environment
0℃-55℃
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0℃ - 55℃
Storage Temperature
-15℃ - 60℃
