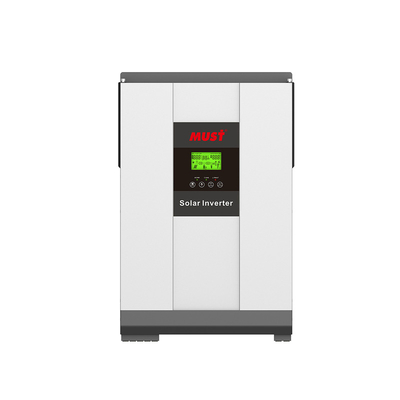

home & solar system on grid solar inverter 5KVA 48V solar hybrid inverter with MPPT charger

1 Piece
MOQ
home & solar system on grid solar inverter 5KVA 48V solar hybrid inverter with MPPT charger
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: PH1800 Hybrid Inverter
Input Voltage: 110v/120v/220v/230v
Output Voltage: 110V/220V/230V/240V
Output Current: 10A/20A/30A/60A
Output Frequency: 50Hz Or 60Hz
Output Type: Single
Size: 240*316*95mm
Type: DC/AC Inverters
Weight: 15kg
DC Voltage: 48v
Charge Current: 60A AC Charge Current
MPPT Controller: 60A
Wave Form: Pure Sine Wave
Color: Silver, Red, Green
Efficiency: 98%
Power Supply: Inverter Dc To Ac
Inverter Type: On/Off Hybrid Solar Inverter
Protection: Over Voltage/current, Overload
Application: Home & Solar System
Basic Infomation
Model Number: PH1800 Hybrid Inverter
Payment & Shipping Terms
Packaging Details: 1pc in one carton 668x425x271mm
Supply Ability: 20000 Piece/Pieces per Month Quantity order will be discounted
Product Description

On Off Grid Solar Inverter 5KVA 48V Hybrid Solar Inverter with MPPT Charger

Product Description

Hybrid On/Off Solar Inverter 2KVA 3KVA 4KVA 5KVA

Main Features

This is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current , AC/solar charger priority, and acceptable input voltage based on different applications.

1. Pure sine wave output
2. ON/OFF grid hybrid solar Inverter with energy storage
3. Multiple operations :ON-GRID,OFF-GRID,GRID-TIE with backup
4. Built-in 48V 60A MPPT solar controller
5. High Inverter Efficiency 93% ;Low standby self- consumption 2W.
6. Parallel operation On Grid max. 3 units, Off Grid max. 6 units.
7. AC / Solar charger priority via LCD setting
8. User-adjustable battery charging current suits different types of batteries
9. AGS function Compatible to generator
10. RS485 and Dry contact
11. Auto restart while AC/SOLAR is recovering,
12. Overload,/short circuit/overvoltage/under-voltage/over temperature protection
13. Wide AC input Voltage : 90V-280VAC or 170-280V

Technical Specification

MODEL

PH18-1K

MPK Plus

PH18-2K

MPK Plus

PH18-3K

MPK Plus

PH18-4K

MPK Plus

PH18-5K

MPK Plus

Default Battery System Voltage

24VDC

48VDC

INVERTER OUTPUT

Reted Power

1000VA/

800W

2000VA/

1600W

3000VA/

2400W

4000VA/

3200W

5000VA/

4000W

Surge Power

2000VA

4000VA

6000VA

8000VA

10000VA

Waveform

Pure sine wave

AC Voltage Regulation (Batt.Mode)

230VAC±5%

Electric current

3.4A

7.0A

10.5A

13.0A

Output frequency precision

50Hz±0.1%

THD

(Linear loads)

Off grid≤2%

Grid discharge ≤3%

Grid charge ≤3%

Inverter Efficiency (Peak)

90%

93%

Transfer Time

10ms(FST,APL);20ms(SLO)

AC INPUT

Voltage

230VAC

Selectable Voltage Range

170~280VAC(FST);90~280VAC(SLO);184-253VAC(APL)

Frequency Range

50Hz/60Hz (Auto sensing)

BATTERY

Nominal voltage

24VDC

48VDC

Floating Charge Voltage

27VDC

54VDC

Overcharge Protection

31VDC

60VDC

SOLAR CHARGER

& AC

CHARGER

Maximum PV Array Open Circuit Voltage

145VDC

PV Array MPPT Voltage Range

30~130VDC

64~130VDC

Standby Power Consumption

2W

Reted Power

1500W

3000W

Maximum Solar Charge Current

60A

Maximum Efficiency

98%

Maximum AC Charge Current

10A or 20A

20A or 30A

60A

Maximum Charge Current

60A

120A

MECHANICAL SPECIFICATIONS

Dimension,W*H*D(mm)

272*372*131

295*528*141

Net Weight(kg)

7.4

7.6

8.0

12.5

13.5

OTHER

Humidity

5% to 95% Relativ Humidity (Non-condensing)

Operating Temperature

0°C -55°C

Storage Temperature

-15°C-60°C

What will be shown on the screen display?

Power Inverter Actual Picture

Power Inverter Parallel Picture

Packaging & Shipping

Payment Terms
Payment TermsT/TEXW30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)30% T/T in advance, paid the balance against copy of B/L
CIF
L/CL/C amount above 50,000 usd, we can accept L/C at sight
Western UnionAmount lower than 5000usd
Delivery time7~10days after receiving payment for one container

You can try Trade Assurance, you'll enjoy:

  • 100% product quality protection
  • 100% on-time shipment protection
  • 100% payment protection for your covered amount
Company Information

Shenzhen Must Energy Technology Co., Ltd

----Must Energy Technology Co., Ltd was established in 1998, with the headquarter in Hong Kong,
which is a professional Hi-tech enterprise specializes in the research, development and
manufacturing of Uninterruptible Power Supply (UPS),power inverter, solar power inverter.

----Our comprehensive product lines include: Offline UPS, line interactive UPS, online UPS,
power inverter, solar inverter, solar controller. Most products with CE, SONCAP certificate and
IS9001 quality certificate. We are one of the authorized suppliers for China Government.

----Must solar with an excellent R & D team formed by over 30 engineers, and together 10, 000
square meter in-house manufacturing facilities in Shenzhen city, Guangdong, China. Our main
markets are Africa, Middle East as Ukraine, Italy, Kenya, South Africa, Nigeria, Pakistan etc.

Trade Shows

FAQ
Q1: What's the different between inverter and solar inverter.

A1: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with

solar panel to accept PV input, it more save power.

Q2: What's the controller of this power inverter inbuilt with?

A2: It's a high frequency inverter with MPPT solar controller inside.

Q3: Does this 5KVA hybrid inverter have the parallel function?

A3: Yes, it has parallel function to enlarge the power.

Q4: Can this power inverter be connected in 3-phase power?

A4: Yes, it can be connected in 3-phase voltage with 3 units paralleled.

Q5: Can this solar power inverter sell energy to commercial grid?

A5: Yes, it can sell solar energy production to grid.

Q6: Do you also produce any other solar products?

A6: Yes, our product ranges:

1. Pure sine wave Solar inverter from 300w to 12kw
2. Pure sine wave home inverters from 300w to 12kw
3. UPS pure sine wave 500va to 500Kva.
4. Modified sine wave inverter 1kva & 2kw
5. MPPT solar charge controller from 20a to 60a
6. Batteries AGM from 7ah to 250ah , Gel battery from 24ah to 250ah, 12v
7. Poly/Mono Solar Panels from 5w to 300w.
