Home /Products/Rack Mounted Lithium Battery/Energy storage system 100ah lithium iron phosphate solar battery 5kwh server rack lifepo4 solar battery 48v server rack battery

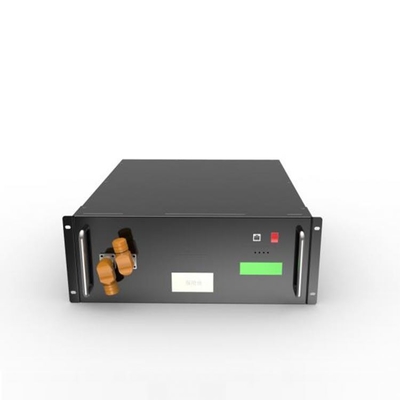

Energy storage system 100ah lithium iron phosphate solar battery 5kwh server rack lifepo4 solar battery 48v server rack battery

1 piece
MOQ
Energy storage system 100ah lithium iron phosphate solar battery 5kwh server rack lifepo4 solar battery 48v server rack battery
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 48V 5kwh
Battery Type: LiFePO4
Cell Type: LFP
BMS: In Built
Ingress Protection: IP21
Cycle Life: 4000times
Max Discharge Rate: 3C
Color: Customized
Application: Energy Storage System
OEM/ODM: Yes
Shipping Standard: UN38.3
Operating Temperature: -20~55 ℃
Basic Infomation
Model Number: 48V 5kwh
Payment & Shipping Terms
Packaging Details: wooden or customization
Supply Ability: 1000 Piece/Pieces per Month
Product Description
Why Choose Us
Why Choose Us
We have our own R&D team. From your project, drawing design to supply chain system, start production and manufacturing can be one-stop solution, which will greatly improve work efficiency. Our more than 10 years of experience in the battery industry will lay a good foundation for our cooperation, and we look forward to working with you!
We have a number of high-voltage testing equipment, battery charging and discharging equipment. As well as the high and low temperature temperature resistance test of the battery, the source of the pack is the battery, our pouch cell has low internal resistance, wide temperature resistance, no fire and no explosion.


We also have a 1000v high voltage equipment, our business field covers bus batteries, there is a project of 614v battery pack, we can also easily complete the test.

Products Description
Products Description

Discharge curve @25°C

100%DOD 1C1D cycyle life @25°C

Product Paramenters
Product Paramenters
Part Number
-48V 5KWH
Energy storage
5.0KWh
Nominal Voltage
48V/DC
Maximum Charge Voltage
58V/DC
Discharge Cut-off Voltage
37.8V/DC
ESR/AC @1KHz 50% SOC
<15mΩ
Max. Continuous Charge Current
100A
Max. Continuous Discharge Current
100A
Peak Current
208A
Cooling Method
Natural
Cells Self-discharge Rate
2% per month
Projected Cycle Life ( 25°C)
20,000 times
Recommended Depth of Discharge
≤90%
Maximum Depth of Discharge
100%
Shell Material
Metal & ABS plastic
Monitoring Data
SOC,voltage,current, temperature
Series Connection
Not allowed
Parallel Connection
Up to 10sets
Series-Parallel Connection
Not allowed
MECHANICAL SPECIFICATIONS

Weight
62Kg
Dimensions(WxDxH)
475x665x177(mm)
Mount Options
On floor

Production Line
Production Line



Packing&Transportation
Packing&Transportation
