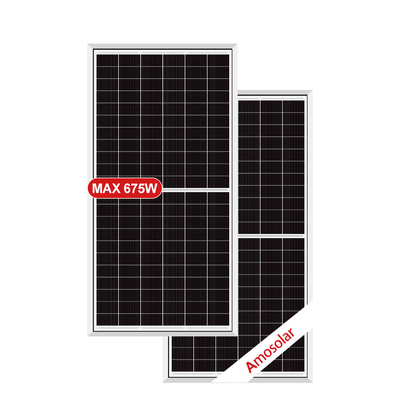

Solar Power System Amosolar Monocrystalline 210mm Half Cell 645w 650w 655w 660w 665w 670w 675w Solar Panel For House

1 watt
MOQ
Solar Power System Amosolar Monocrystalline 210mm Half Cell 645w 650w 655w 660w 665w 670w 675w Solar Panel For House
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: AS645-675G12-132
Cell Size: 210mmx210mm
Type: PERC, Half Cell, Bifacial, Double-glass, All Black, HJT, N-TYPE, TOPCON, BIPV, Flexible
Panel Dimensions: 2384*1303*35 Mm
Panel Efficiency: 21.73%
Certificate: CE/TUV/INMETRO/ISO
Warranty: 25 Years Warranty
Solar Cell: 210*210mm,Grade A
Application: Solar Power System
Junction Box: IP68 Rated
Frame: Anodized Aluminium Alloy
Product Name: Solar Panel
Keyword: PV Module
Glass: 3.2mm Tempered Low Iron
OEM Order: Acceptable
Connector: MC4 Compatible Connector
Cable: 4mm2
Basic Infomation
Certification: CE/TUV/INMETRO/ISO
Model Number: AS645-675G12-132
Payment & Shipping Terms
Packaging Details: Cartons and pallets and wooden box
Product Description
Solar Panel Description
Mechanical Data
ELECTRICAL PARAMETERS
Rated Maximum Power at STC
645W
650W
655W
660W
665W
670W
675W
Open Circuit Voltage (Voc)
45.00
45.20
45.40
45.60
45.80
46.00
46.20
Maximum Power Voltage (Vmp)
37.30
37.50
37.70
37.90
38.10
38.30
38.50
Short Circuit Current (Isc)
18.31
18.35
18.39
18.44
18.48
18.51
18.55
Maximum Power Current (Imp)
17.29
17.33
17.37
17.41
17.45
17.49
17.53
PV Module Efficiency (%)
20.76
20.92
21.09
21.25
21.41
21.57
21.73
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5.
*Measuring Tolerance: ±3%.
Layout
132( 6 × 22 ）
Junction Box
Split junction box, IP67, 3 diodes
Weight
35.7KG
Cable Length
300mm (+) / 300mm（-)
Cable Size
4mm²（IEC)
PV Size
2384×1303×35mm

Packaging
31 pcs / pallet
558 pcs / 40HQ container
Raw Material
FLAT/XINYI 3.2mm Coated Tempered Glass
22% Higher Effiency
Cell by Tier 1 Brand/A Grade
AKOME Anodized Aluminum Alloy Frame
Junction Box by TL, QC Solar Innovatiove Full-Glue-Filled IP68 Waterproofness
PV Connector by TL, QC Solar MC4 4MM Qualified cable
Waterproof Lables Product by Waterproof Lables
AMOSOLAR / OEM
Certifications
Auto Production Line
SMARTER MANUFACTURING
Utilizingilizing fully automated manufacturing facilities

ADVANCED TECHNOLOGY
Automated manufacturing facilities
Advanced quality control system
Self-developed fully transparent quality management system
Strict QC System
External Assessment
After Lamination,Check Each Panels
Make sure that the surface of eachsolar panel is complete, clean and correct.

EL Testing
Before and Following Lamination,Twice Testing Ensure no micro crack monitoring before final inspection, Continuousline monitoring and video/photorecord for each cell and panel.

IV Testing
After Lamination,Conduct Electrical Performance Testing Simulate the real sunlight and testthe voltage and current of each solar panel to ensure the efficiency of each solar panel.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Model
ASXXXG12-100
ASXXXG12-110
ASXXXG12-120
ASXXXG12-132
Modules per pallet
31 pieces
31 pieces
31pieces
31 pieces
Modules per 40' HQ
620 pieces
620 pieces
558 pieces
558 pieces
Project
OEM Service
FAQ
1: What kind of Solar Cells we have?
Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm
Poly solar cell 156.75*156.75mm.

2: What is the lead time?
Normally 15 working days after advance payment.

3: What is your monthly capacity?
Monthly capacity is about 200MW.

4:What is the warranty period, how many years?
12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power outputwarranty for bifacial solar panel.

5: How is your technical support?
We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you
video call anytime, our engineer will also go to oversea help our customers if necessary.

6:How to become your agent?
Contact us through alibaba/email, we can talk details to confirm.

7: Is sample available and free?
Sample will charge cost, but the cost will be refund after bulk order.

8.What's the delivery & payment term?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
