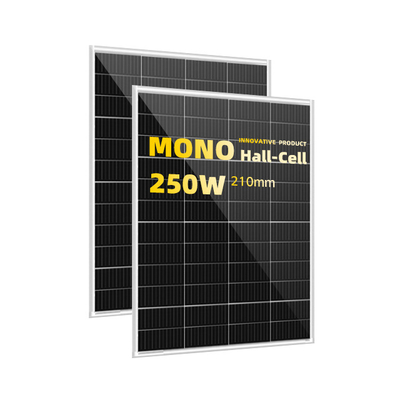

Name: Mini 250w 300w Solar Power System Osda Smart PERC Solar Panel System High Efficiency Mini Solar Panel Solar Power Panel
Brand: Mini 250w 300w Solar Power System Osda Smart PERC Solar Panel System High Efficiency Mini Solar Panel Solar Power Panel
SKU: ODA-250W24M
Rating: 5 (104 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: ODA-250W24M

Cell Size: 210mmx105mm

Type: PERC, Half Cell

Panel Dimensions: 1330*880*30mm

Panel Efficiency: 21.37%

Certificate: TUV/CQC/INMETRO/CE/ISO/MCS/IEC61215/IEC61730

Warranty: 30-year Warranty

Application: Solar Power System

Basic Infomation

Certification: TUV/CQC/INMETRO/CE/ISO/MCS/IEC61215/IEC61730

Model Number: ODA-250W24M

Payment & Shipping Terms

Packaging Details: 2 pcs per carton , can be customized

Supply Ability: 400 Milliwatt/Milliwatts per Year

Product Description

off-grid solar module 100W

Half-cut Technology

lower internal current
lower internal resistance loss

Significantly avoiding heat spot

lower temperature

increase the output of modules

Lower cost

Increasing power generation

reduce the cost per kilowatt-hour

Excellent performance of PID resistance

The performance of PID resistance

passed the standard of TUV Nord

AUTOMATIC PRODUCTION LINE

01.Cell Test

02.Automatic Series Welding

03.Laying

04.EL Test

05.Lamination I

06.Lamination II

07.Mounting frame

08.EL/IV Test

APPLICATION SCENARIOS

Water Pump

Fully automatic pumping
without manpower

Economical and labor-saving

Solar Lamp

Light up

the dark road at night

Free and practical

Solar Portable System

Portable free power supply

Where there is sunshine

there is electricity

Solar Vehicle

Environmental protection

energy saving

safety and economy

TECHNICAL CRAFT

quality is Osda Smart‘s core competitiveness，We start from the very beginning of production，and are strict with ourselves and products

PRODUCT DETAILS

PV DRAWINGS

ELECTRICAL DATA(STC)
Model Type			ODA-250W24M
Peak Power(Pmax)			250.00
Maximum Power Voltage(Vmp)			27.60
Maximum Power Current(Imp)			9.06
Open Circuit Voltage(Voc)			33.30±3%
Short Circuit Current(Isc)			9.60±3%
Module Efficiency(%)			21.37
* STC irradiance 1000W/m²,AM1.5,and cell temperature of 25℃

TEMPERATURE & MAXIMUM RATING
Maximum System Voltage(V)			1000V/1500V
Maximum Series Fuse Rating(A)			15 A
Power Tolerance			0~+3 W
Pmax Temperature Coefficients(W/℃)			-0.340 %/℃
Voc Temperature Coefficients(V/℃)			-0.250 %/℃
Isc Temperature Coefficients(A/℃)			+0.040 %/℃
NOCT Nominal Operating Cell Remperature(℃)			45±2 ℃
Operating and Storage Temperature(℃)			-40~+85 ℃

MECHANICAL CHARACTERISRTICS
Cll Typee			210*105 Mono
No. of Cells			48(4*12)
Dimensions			133088030mm
Weight			12.32kg
Front Glass			3.2mm high transmission, low iron, tempered glass
Frame			Anodized Aluminium Alloy
Junction box			IP67/IP68 3diodes
Output cables			4mm² cable 90cm(Inlcuding MC4 connector)
MaxWind Load/Snow Load			2400Pa/5400Pa

PACKING WAY
20FT container			2pcs/ Carton; 576pcs=288 Cartons
40HQ container			2pcs/ Carton; 1382pcs=691 Cartons

PACKAGING SOLUTION

Panel Size：1330*880*30mm

Carton Inside Diameter：1333*890*63mm

Technical Requirements： 1、The size and position of each pattern and font are shown in the figure； 2、Positive tolerance within 2mm shall be taken in the outer box；
