Home /Products/Micro Solar Inverters/Deye SUN1300G3-EU-230 SUN1600G3-EU-230 SUN2000G3-EU-230 Micro Inverter Single Phase 267W*300H*42D(mm) 1300W 1600W 2000W

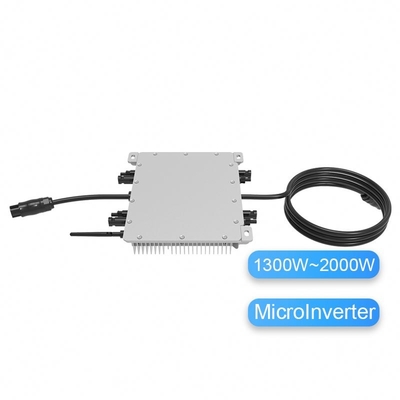

Deye SUN1300G3-EU-230 SUN1600G3-EU-230 SUN2000G3-EU-230 Micro Inverter Single Phase 267W*300H*42D(mm) 1300W 1600W 2000W

5 pieces
MOQ
Deye SUN1300G3-EU-230 SUN1600G3-EU-230 SUN2000G3-EU-230 Micro Inverter Single Phase 267W*300H*42D(mm) 1300W 1600W 2000W
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SUN1300/1600/2000G3-EU-230
Input Voltage: 60V
Output Voltage: 230V / 0.85Un-1.1Un
Output Current: 5.7-8.7A
Output Frequency: 50 / 60Hz
Output Type: Single
Size: 267W*300H*42D(mm)
Type: DC/AC Inverters
Inverter Efficiency: 96.5%
Certificate: CE;EMC;IVD
Warranty: 10 YEARS
Weight: 5.2KG
Output Type:: Single
Enclosure Environmental Rating: IP67
Ambient Temperature Range: -40~65℃
Inverter Type:: On-grid Solar Micro Inverter
Safety EMC / Standard: UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC...
Basic Infomation
Certification: CE;EMC;IVD
Model Number: SUN1300/1600/2000G3-EU-230
Payment & Shipping Terms
Packaging Details: Carton box
Supply Ability: 1000 Piece/Pieces per Week
Product Description
Product Description
Specifications
Model
SUN1300G3-US-220
SUN1300G3-EU-230
SUN1600G3-US-220
SUN1600G3-EU-230
SUN2000G3-US-220
SUN2000G3-EU-230
Input Data (DC)
Recommended input Power (STC)
210~400W (4 Pieces)
210~500W (4 Pieces)
210~600W (4 Pieces)
Maximum input DC Voltage
60V
MPPT Voltage Range
25~55V
Full Load DC Voltage Range (V)
26.5~55V
33~55V
40~55V
Max. DC Short Circuit Current
4×19.5A
Max. input Current
4×13A
No.of MPP Trackers
4
No.of Strings per MPP Tracker
1
Output Data (AC)
Rated output Power
1300W
1600W
2000W
Rated output Current
5.9A
5.7A
7.3A
7A
9.1A
8.7A
Nominal Voltage / Range (this may vary with grid standards)
220V/0.85Un-1.1Un
230V/0.85Un-1.1Un
220V/0.85Un-1.1Un
230V/0.85Un-1.1Un
220V/0.85Un-1.1Un
230V/0.85Un-1.1Un
Nominal Frequency / Range
50 / 60Hz
Extended Frequency / Range
45~55Hz / 55~65Hz
Power Factor
>0.99
Maximum units per branch
4
4
3
Efficiency
CEC Weighted Efficiency
95%
Peak Inverter Efficiency
96.50%
Static MPPT Efficiency
99%
Night Time Power Consumption
50mW
Mechanical Data
Ambient Temperature Range
-40~65℃
Size (mm)
267W×300H×42D (Without mounting bracket and cable)
Weight (kg)
5.2
Cooling
Natural cooling
Enclosure Environmental Rating
IP67
System Architechture
Our factory
Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types, for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.
Certificate
Product packaging
FAQ
1. Who are we? We are a professional manufacturer on Solar Panel with many years experience. Our factory and business office located in Wuxi City, Jiangsu Province. 2. What can we provide? We can provide solar panel,solar inverter,solar energy system. 3. Why choose us? A.Higher power generation B.Competitive price C.High quality standard D.Customized service 4. What services can we provide? Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,FCA,DDP,DDU; Accepted Payment Currency:USD,EUR,CNY; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash.
