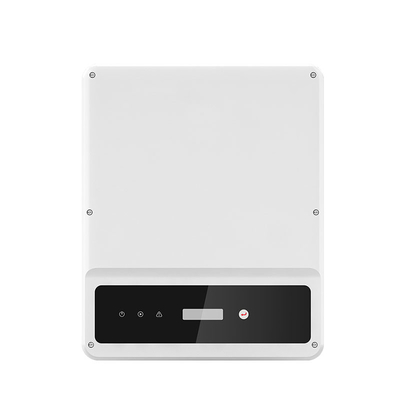

High Efficiency Solar Inverter Micro Hybrid Inverter Off Grid Inverter 5KW 10KW For Home Customize 354*433*147mm

1.0 piece
MOQ
High Efficiency Solar Inverter Micro Hybrid Inverter Off Grid Inverter 5KW 10KW For Home Customize 354*433*147mm
Features Gallery Product Description Request A Quote
Features
Specifications
Input Voltage: 360
Output Voltage: 220 / 230
Output Current: 13.6~27.3
Output Frequency: 50 / 60
Output Type: Single, Three Phase
Size: 354 *433 * 147mm
Type: DC/AC Inverters
Inverter Efficiency: 3000w
Certificate: CE/ROHS
Warranty: 25years
Weight: 13kg
Nominal Input Voltage (V): 360v
Max. Input Voltage (V): 600v
Nominal Output Voltage (V): 220 / 230
Basic Infomation
Certification: CE/ROHS
Payment & Shipping Terms
Packaging Details: Carton Box with Pallets
Supply Ability: 1000 Piece/Pieces per Week
Product Description
Product Description
DNS Series(Single Phase)
GD3000D-NS
GD3600D-NS
GD4200D-NS
GD5000D-NS
GD6000D-NS
PV String Input Data
Max.DC Input Power(W)
3900
4680
5460
6500
7200
Max.DC Input Voltage(V)
600
600
600
600
600
MPPT Range(V)
80~550
80~550
80~550
80~550
80~550
Start-up Voltage(V)
120
120
120
120
120
Nominal DC Input Voltage(V)
360
360
360
360
360
Max. Input Current(A)
11/11
11/11
11/11
11/11
11/11
Max. Short Current(A)
13.8/13.8
13.8/13.8
13.8/13.8
13.8/13.8
13.8/13.8
No. of MPP Trackers
2
2
2
2
2
No. of Input Strings per Tracker
1
1
1
1
1
AC Output Data
Nominal Output Power(W)
3000*1
3680*1
4200*1
5000*1
6000*1
Max. Output Apparent Power(VA)
3000
3680
4200
5000
6000
Nominal Output Voltage(V)
220/230
220/230
220/230
220/230
220/230
Nominal Output Frequency(Hz)
50/60
50/60
50/60
50/60
50/60
Max. Output Currrent(A)
13.6
16
19
22.8
27.3
Max. AC Currrent(A)
12
14
15
Output Power Factor
~1(Adjustable from 0.8 leading to 0.8lagging)
Output THDi(@Nominal Output)
<3%
Efficiency
Max. Efficiency
97.8%
97.8%
97.8%
97.8%
97.8%
European Efficiency
97.5%
97.5%
97.5%
97.5%
97.5%
Protection
Anti-islanding Protection
Integrated
Integrated
Integrated
Integrated
Integrated
Input Reverse Polarity Protection
Integrated
Integrated
Integrated
Integrated
Integrated
Insulation Resistor Detection
Integrated
Integrated
Integrated
Integrated
Integrated
Residual Current Monitoring Unit
Integrated
Integrated
Integrated
Integrated
Integrated
Output Over Current Protection
Integrated
Integrated
Integrated
Integrated
Integrated
Output Short Protection
Integrated
Integrated
Integrated
Integrated
Integrated
Output Over Voltage Protection
Integrated
Integrated
Integrated
Integrated
Integrated
General Data
Operating Temperature Range(°C)
-25~60
-25~60
-25~60
-25~60
-25~60
Relative Humidity
0~100%
0~100%
0~100%
0~100%
0~100%
Operating Alititude(m)
≤4000
≤4000
≤4000
≤4000
≤4000
Cooling
Natural Convection
Noise(dB)
<25
<25
<25
<25
<25
User Interface
LCD&LED
LCD&LED
LCD&LED
LCD&LED
LCD&LED
Communication
RS485 or WiFi or LAN
Weight(KG)
13
13
13
13
13.5
Size(Width*Height*Depth mm)
354*433*147
Protection Degree
IP65
IP65
IP65
IP65
IP65
Night self Consumption(W)
<1
<1
<1
<1
<1
Topology
Transformerless
Certifications & Standards
Grid Regulation
VDE-AR-N 4105,
VDE0126-1-1,
EN50438(PL),EN50438(SW),AS4777.2,IEC61727,IEC62116,CEI 0-21,RD 1669:2011,UNE 206006 IN:2011,UNE 206007-1 IN:2013,G83
VDE-AR-N 4105,
VDE0126-1-1,
EN50438(PL),EN50438(SW),AS4777.2,IEC61727,IEC62116,CEI 0-21,RD 1669:2011,UNE 206006 IN:2011,UNE 206007-1 IN:2013,G59
VDE-AR-N 4105,
VDE0126-1-1,
EN50438(PL),EN50438(SW),AS4777.2,IEC61727,IEC62116,CEI 0-21,RD 1669:2011,UNE 206006 IN:2011,UNE 206007-1 IN:2013,G59,MEA,PEA
VDE-AR-N 4105,
VDE0126-1-1,
EN50438(PL),EN50438(SW),AS4777.2,IEC61727,IEC62116,G59,MEA,PEA
Safety Regulation
IEC62109-1&-2
EMC
EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4,EN61000-6-4-16,
EN61000-6-18,EN61000-6-29
The perfect match for a home Due to its compact size and light weight installation. Durable with modern manufacturing Industry standard, is IP65 rated, So it can be installed inside or outside your home. With a low start-up voltage of only 80V and widest MPPT voltage 80-550V range, these inverters can provide more options Suitable for your home system. This series is also Extremely light, 30% lighter than other inverters.
Packaging & Shipping
application
Company Profile

Who are we?

Sichuan Jinming Huixin International Trading Co., Ltd. is a trading company with rich experience in import and export. Founded in 2017 in qingbaijiang district, China (Sichuan) Pilot Free Trade Zone.The company is located in Chengdu, the largest city in Western China, and is the hometown of pandas in China.

Our advantage

Our team has more than 20 years of import and export experience. Since its establishment, the company has established long-term
and stable trade relations with customers in dozens of countries such as Germany, Denmark, Spain, the Netherlands, the United
Kingdom, France, Ireland, Brazil, Chile, the United States, Canada, Russia and Kazakhstan.
FAQ

Q1: Are you trading company or manufacturer? A: We are trading company,but we have directly cooperate factory in cities along the coast of China. Q2: How long is your delivery time? A: Generally, it is 10-15 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity. Q3. What are your terms of payment? A: PayPal, Western union, a trade assurance，L/C,T/T. Q4. What are your terms of trade? A: EXW, FOB, CFR, CIF, DAP, DDU, DDP Q5. What are your terms of packing? A:We pack our goods in carton or wooden box. Q6. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery. Q7. Whether you could make our brand on your products? A: Yes. We can print your Logo on both the products and the packages if you can meet our MOQ. Q8. Whether you could make your products by our color? A: Yes, The color of products can be customized if you can meet our MOQ.
