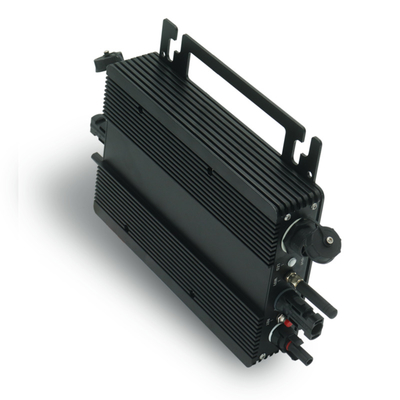

jiajiu 600W TUYA Smart WIFI control IP65 waterproof with VDE certification micro three phase inverter 200mmx230mm x 40mm single phase

1 set
MOQ
jiajiu 600W TUYA Smart WIFI control IP65 waterproof with VDE certification micro three phase inverter 200mmx230mm x 40mm single phase
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: GT-600
Input Voltage: 20V-50V
Output Voltage: 120V/230V
Output Current: @120VAC:6A/@230VAC:3.5A
Output Frequency: 50/60Hz
Output Type: Single, Triple
Size: 200mmx230mm X 40mm
Type: DC/AC Inverters
Inverter Efficiency: 95%
Certificate: CE/VDE
Warranty: 5 Years
Weight: 1.96
Number Of Input MC4 Connector: 2sets
MPPT Voltage Range: 22V-48V
Operation Voltage Range: 20V-50V
Maximum Input Voltage: 50V
Startup Voltage: 22V
Maximum Input Power: 600W
Maximum Input Current: 10.5A
Peak Efficiency: 95%
Nominal MPPT Efficiency: 99.5%
Night Power Consumption: <1w
Basic Infomation
Certification: CE/VDE
Model Number: GT-600
Payment & Shipping Terms
Product Description
Product Paramenters
Input Data (DC, PV)
Number of Input MC4 Connector
2 sets
MPPT Voltage Range
22V-48V
Operation Voltage Range
20V-50V
Maximum Input Voltage
52V
Startup Voltage
22V
Maximum Input Power
600W
Maximum input Current
10.5A
Output Data(AC)

Single-Phase Grid Type
120V&230V
Rated Output Power
600W
Maximum Output Power
600W
Nominal Output Current
@120VAC:6A/@230VAC:3.5A
Nominal Output Voltage
120VAC /230VAC
Default Output Voltage Range
@120VAC:80V-160V /@230VAC:180V-270V
Nominal Output Frequency
50Hz / 60Hz
Default Output Frequency Range
@50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz
Power Factor
>0.99%
Total Harmonic Distortion THD
＜5%
Maximum Units per Branch
@120VAC:5units /@230VAC: 10units
Efficiency
Peak Efficiency
95%
Nominal MPPT Efficiency
99.5%
Night Power Consumption
＜1w
Mechanical Data
Operating Ambient Temperature Range
-40℃ to +65℃
Storage Temperature Range
-40°C to +85C
Dimensions(W*H *D)
200mmx230mm x 40mm (not include connectors and cable)
Weight
1.96kg
Max Current of AC Bus Cable
20A
Waterproof Grade
IP65
Cooling Mode
Natural Convection- No Fans
Other Features
Communication
WIFI(Cloud monitoring)
Transformer Design
High Frequency Transformers,Galvanically Isolated
Integrated Ground
Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions
lsolated Island Protection,Voltage Protection, Frequency Protection, Temperature Protection,Current Protection, etc.
Design Compliance
 EN IEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC55014-2:2021,EN IEC55014-2:2021,
Products Description
Company Profile
Company Profile
Founded in 2014, the company is a new technology private enterprise dedicated to micro-inverters for photovoltaic power generation. The main business is photovoltaic power generation, forming four industrial clusters of photovoltaic basic technology research and development, photovoltaic power generation system equipment manufacturing, photovoltaic engineering construction and large-scale photovoltaic power station investment. Continuous innovation and upgrading of core application technology, research and development of different series of products, off-grid inverters, grid-connected micro-inverters (main power 350W/600W/800W/1200W/2800W), solar LED street lights, and won national patents and There are a number of relevant qualification certificates from European countries, and the achievements of the products are the driving force for our progress.
Certifications
Our Advantages
The whole body of the product is more solid, all around the fuselage sealed with glue, can reach IP65 waterproof
Upgrade WIFI module, can help users solve product problems remotely
The delivery hole is on the AC line, and the receiving end metal is on the product body, so users are not easy to get electric
shock.
Install a heat sink around the product to prevent the product from overheating and stopping working.
Installation Instructions
FAQ
Q1. WHAT TO DO when the Smart-App can't find the micro inverter to be added?

jasonli210102?gmail.com

A1:Check the following points:
* Check if the WiFi status indicator of the micro inverter is in the "Blue Flashing" state;
* Check if the Bluetooth function of your smart device is turned on;
* Check if the signal of the wireless network is good.

If all this is the case and the inverter is still not found, press the red reset button for more than 5 seconds to
reset. After the WiFi indicator light flashes blue again, use "Smart Life" App to reconfigure the network.
2. WHAT TO DO if I have multiple micro inverters to configure?

Install all micro inverters properly and make them work normally to generate power, and then
operate according to the configuration and use steps. The App can search all inverters to be added at one
time and configure them at one time.
3. WHAT TO DO if the SSID of my WiFi network or the password is changed?

Please reconfigure the inverter according to the configuration and use steps.
4. WHAT TO DO if the WiFi status indicator of the inverter goes out, but the device displayed on the

app is not online?
This means that you can connect to the wireless network device, but you can't connect to the cloud
server. It means that your wireless network device can't connect to the Internet. Make sure that your
Internet is working properly.
5. The installation site of the inverter is temporarily not equipped with a router and no WiFi signal.

How does App connect the inverter and detect if the inverter is working properly?
You can use an idle smartphone to open the WiFi sharing of mobile phone signal hotspot for
connection, and reconfigure the network connection after installing the router.
6. There are multiple WiFi signals on site. Can we connect with different WiFi signals?

No, the WiFi connected of the micro inverter and the smart phone must be consistent before the
network can be configured.
7. Can App configure the micro inverter in different places? Can I view data in different places?

You can't configure the micro inverter in different places, but you can view data in different places.
The inverter uploads the latest status data to the cloud server every minute.
8. After checking that there is no problem, the App still cannot find the micro inverter.

Press and hold the inverter red button for more than 5 seconds to reset the inverter.
After the WiFi indicator flashes again, use App to reconfigure the network.
9. WHAT TO DO if I want to monitor the same inverter on two or more smart devices?

You can share the inverter with another phone using the share device feature.
10. Will App data be saved?

Yes, App data will be stored on cloud server. After the network is successfully configured, you can
view the data at any time and place.
11. The inverter cannot be connected to the app at night?

At night, because the solar panel does not generate power, the micro inverter does not have any
power input, so it will offline and it is impossible to re-configure the network at night.
