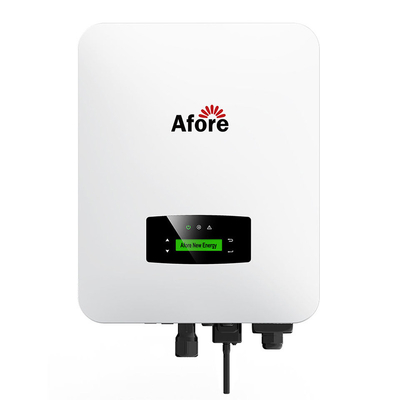

Customizable Solar Power System PV DC to AC Single Phase Low Voltage Hybrid Inverter Electric Power Inverter

1 piece
MOQ
Customizable Solar Power System PV DC to AC Single Phase Low Voltage Hybrid Inverter Electric Power Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: Afore
Input Voltage: 40-60V
Output Voltage: 220V/230V/240V
Output Current: 22.8 / 21.8A
Output Frequency: 50Hz/ 60Hz
Output Type: Single
Size: 513 X 370 X 192mm
Type: DC/AC Inverters
Inverter Efficiency: 98%
Certificate: CE IOS9001, ISO9001
Warranty: 3 Years
Weight: 17KG
Product Name: Hybrid Inverter
Application: Solar Power System
Inverter Type: Single Phase Low Voltage Hybrid Inverter
Protection: IP65
Battery Type: Lead Acid \ Lithium \ Gel
Waveform: Pure Sine Wave MPPT Inverter
Frequency: 50/60Hz
OEM: Accepted
Keyword: Solar Energy Power Inverter
Display: LCD Display
Basic Infomation
Certification: CE IOS9001, ISO9001
Model Number: Afore
Payment & Shipping Terms
Supply Ability: 1000 Piece/Pieces per Week
Product Description

Product Details
Product Details
The Afore AF low votaze Series stora ge lnverters are desizned to increase enerey independence for homeowners The power range is front1kW to 6kW, compatible with low voltage (40-50V) batteries. Energy management is based on time-of-use and demand charge rate structures, signifcantly reduce the amount of energy purchasedfrom the public grid. Thanks for the UPs function (sitch time < 10ms, enables the crucial loads power on during outages. Additionally, under the backupoperation mode, the inverter provides you up to 150% peak output overloading. The AF low voltage Series storage inverters integrated with Arc Fault Circuit lnterrupter (AFCl) and Rapid Shutdown.

Specification
Specification
Mode
AF3K-SL
AF5K-SL
AF6K-SL
Max.DC Input Power (kW)
4.5
8.3
9
MaxPV Voltage (V)
550


DC Input Voltage Range (V)
150-1000


MPPT Voltage Range(V)
80-500


Start-up Voltage (V)
100


Max. DC Input Current (A)
18.5x2


No. of MPPT Tracker
2


Battery Port



Battery Nominal Voltage (V)
51.2


Battery Voltage Range (V)
40-60


Max.Charge/Discharge Pow(W)
3k
4.8k
4.8k
Max. Charge/Discharge Current(A)
80


Compatible Battery Type
Li-ion / Lead-acid


AC Grid Output



Nominal AC Output Power (VA)
14
26
28
Max ConTInuous Power (kVA)
3
5.5
6
Max. AC Output Current (A)
10.5
13.5
17
Nominal AC Voltage (V)
13.7 / 13.1
25.0 / 24.0
27.3 / 26.1
Nominal AC Frenquency (Hz)
50/60


General Data



Enclosure Protect Level
IP65/ NEMA4X


Dimensions (H x W x D)(mm)
513 x370 x192mm


Weight (kg)
17kg


Display & Communication Interfaces
LCDLED,RS485,CAN,WI-FIGPRS,4G



Applications
Applications

Factory Overview
Factory Overview

Video Presentation
Video Presentation


Packing & Delivery
Packing & Delivery

Certificates
Certificates

FAQ
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Samples order will take about 4-10 days, mass production time needs 2-5 weeks, it depends on order quantity.
Q3. Does the shipping way to our country include tax?
A. It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States, and Canada have tax-included shipping channels if needed.
Q4. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions. Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the production and then delivery.
Q5. Is this product safe?
A. Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no explosion at any circumstance.
Q6.Which certificates do you have for LifePo4 battery pack? How about warranty?
A. We have CE/ROHS/UN38.3/MSDS ...etc., 5 year warranty(from the date of successful delivery).
Q7. Which certificates do you have for LifePo4 battery pack? How about warranty?
A. We have CE/ROHS/UN38.3/MSDS ...etc., 5 year warranty(from the date of successful delivery).
Q8. Is it OK to print my logo on the lithium-ion battery?
A. Yes, OEM/ODM services is offered.
