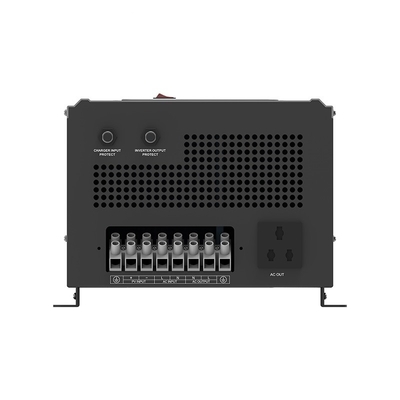

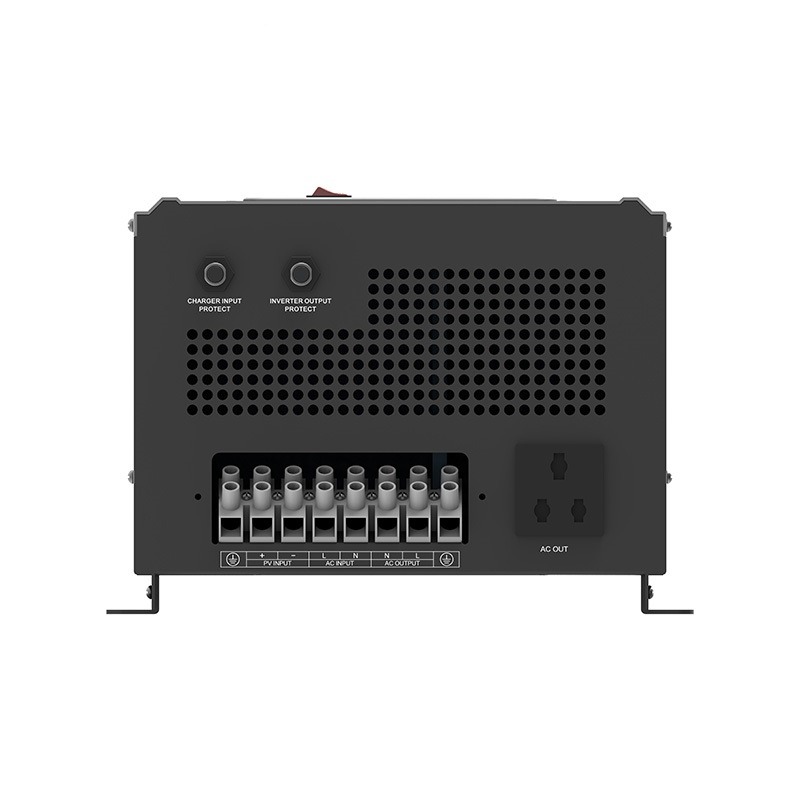

Off grid 1 phase hybrid solar inverter dc to ac solar inverter sofar

1 Piece
MOQ
$272.00(>=1 Pieces)
Price
Off grid 1 phase hybrid solar inverter dc to ac solar inverter sofar
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: PV 3000
Input Voltage: 110/230VAC 96~132VAC/155~280VAC
Output Voltage: 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS)
Output Current: Based On Model
Output Frequency: 50Hz/60Hz +/-0.3 Hz
Output Type: Single
Size: 570*355*300mm/743*372*312mm
Type: DC/AC Inverters
Weight: 21.5-53.1kg
Input Voltage: 96~132VAC 155~280VAC(For Personal Computers)
Output Voltage: 100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS)
Inverter Type: Low Frequency
Certificate: ISO 9001/CE/IEC/TUV
Warranty: 12 Months
Display: LCD
MPPT Operating Voltage Range: 16~100VDC@12V/32~145VDC@24V
MPPT Efficiency: 98
Application: Off Grid System
Cooling: Inteligent Fan
Basic Infomation
Certification: ISO 9001/CE/IEC/TUV
Model Number: PV 3000
Payment & Shipping Terms
Packaging Details: Bubble inside Outside inspection wooden box Or Carton
Supply Ability: 10000 Piece/Pieces per Month
Product Description

1 Phase hybrid solar inverter DC to AC Power sofar solar inverter

MODELPV30-1KW
MPK		PV30-1.5KW
MPK		PV30-2KW
MPK		PV30-3KW
MPK		PV30-4KW
MPK		PV30-5KW
MPK		PV30-6KW
MPK
Nominal Battery System Voltage12VDC24VDC12VDC24VDC12VDC24VDC12VDC24VDC24VDC/48VDC24VDC/48VDC24VDC/48VDC
INVERTER OUTPUT
Rated Power1KW1.5KW2KW3KW4KW5KW6KW
Surge Rating (20ms)3KW4.5KW6KW9KW12KW15KW18KW
Capable Of Starting Electric Motor1HP1HP1HP2HP2HP3HP3HP
WaveformPure sine wave/ same as input (bypass mode)Pure sine wave/ same as input (bypass mode)
Nominal Output Voltage RMS100V/110V/120VAC 220V/230V/240VAC(+/-10% RMS)100V/110V/120VAC 220V/230V/240VAC220V/230V/240VAC
Output Frequency50Hz/60Hz +/-0.3 Hz50Hz/60Hz +/-0.3 Hz
Inverter Efficiency(Peak)>88%>88%
Line Mode Efficiency>95%>95%
Power Factor1.01.0
Typical Transfer Time10ms(max)10ms(max)
AC INPUT
Voltage230VAC230VAC
Selectable Voltage Range96~132VAC 155~280VAC(For Personal Computers)96~132VAC/155~280VAC(For Personal Computers)
Frequency Range50Hz/60Hz (Auto sensing) 40-80Hz50HZ/60HZ (Auto sensing) 40-80Hz
BATTERY
Minimum Start Voltage10.0VDC /10.5VDC for12VDC mode (*2 for 24VDC, )20.0VDC~21.0VDC /40.0VDC~42.0VDC
Low Battery Alarm10.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, )21.0VDC+/-0.6V /42.0VDC+/-1.2V
Low Battery Cutoff10.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, )20.0VDC+/-0.6V /40.0VDC+/-1.2V
High Voltage Alarm16.0VDC +/-0.3V for12VDC mode (*2 for 24VDC, )32.0VDC+/-0.6V /64.0VDC+/-1.2V
High Battery Voltage Recover15.5VDC +/-0.3V for12VDC mode (*2 for 24VDC, )31.0VDC+/-0.6V / 62.0VDC+/-1.2V
Idle Consumption-Search Mode<25W when power saver on<50W when power saver on
AC CHARGER
Output VoltageDepends on battery typeDepends on battery type
Charger AC Input Breaker Rating10A30A30A30A40A
Overcharge Protection S.D.15.7VDC for 12VDC mode (*2 for 24VDC, )31.4VDC/62.8VDC
Maximum Charge Current35A20A45A25A65A35A75A45A65A35A70A40A75A50A
BYPASS & PROTECTION
Input Voltage WaveformSine wave (grid or generator)Sine wave (grid or generator)
Nominal Input Frequency50Hz or 60Hz50Hz or 60Hz
Overload Protection (SMPS Load)Circuit breakerCircuit breaker
Output Short Circuit ProtectionCircuit breakerCircuit breaker
Bypass Breaker Rating10A15A30A30A40A
Max Bypass Current30Amp40Amp
SOLAR CHARGER
Maximum PV Array Power600W1200W600W1200W600W1200W600W1200W1600W3200W1600W3200W1600W3200W
Maximum PV Charge Current40A60A
DC Voltage12V/24V atuo work24V/48V atuo work
MPPT Range @ Operating Voltage16~100VDC@12V/32~145VDC@24V32~145VDC @ 24V / 64~145VDC @ 48V
Maximum PV Array Open Circuit Voltage100VDC/145VDC145VDC
Maximum Efficiency>90%>98%
Standby Power Consumption<2W<2W
MECHANICAL SPECIFICATIONS
MountingWall mountWall mount
Dimensions (W*H*D)423*247*197mm597x247x197mm
Net Weight (Solar CHG) kg18.518.419.519.423.532.228.72741.339.450.448.851.849.2
Shipping Dimensions(W*H*D)570*355*300mm743*372*312mm
Shipping Weight (Solar CHG) kg21.521.422.422.525.825.631.229.644.742.85452.455.753.1
OTHER
Operation Temperature Range0°C to 40°C
Storage Temperature-15°C to 60°C
Audible Noise60dB MAX
