Competitive Price Portable Pure Sine Wave Charger AC DC Inverter Hybrid Solar Power Inverter For Sale CSSI-5KW-PS

1 Set
MOQ
Competitive Price Portable Pure Sine Wave Charger AC DC Inverter Hybrid Solar Power Inverter For Sale CSSI-5KW-PS
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: CSSI-5KW-PS
Certificate: ISO,CE, TUV,CQC, SAA
Warranty: 5 Years
Product Name: Good Quality Pure Sine Wave Inverter
Color: Green
Keywords: Power Inverter For Sale
Basic Infomation
Certification: ISO,CE, TUV,CQC, SAA
Model Number: CSSI-5KW-PS
Payment & Shipping Terms
Packaging Details: One inverter one carton
Product Description
CHASUN 1KW 2KW 3KW 4KW 5KW 6KW 7KW 8KW portable pure sine wave charger hybrid DC AC solar inverter power inverter for sale
Product Overview

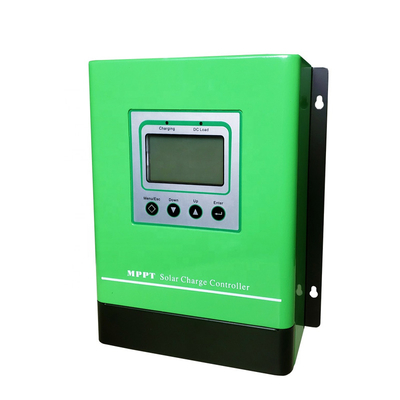

CM series MPPT controller is an advanced, efficient and versatile photovoltaic product.
It uses innovative maximum power point tracking technology to significantly improve the energy efficiency of solar energy systems
with a conversion efficiency of 97%.
The controller adopts intelligent battery charging management and has temperature compensation function to effectively manage the
battery and extend the battery life. The controller integrates RS485 communication interface, which can provide communication
protocol, which is convenient for customers to integrate and manage.

Installation
The installation must be done by a professional technician

Observe the following safety clearances to ensure that other equipment or objects are not in this range to ensure adequate cooling
space .
Products Description
Intelligent maximum power tracking technology
High precision and high effciency with DSP chip control
The widely PV range voltage input , three s tage charging technology
The photovoltaic/battery connection reverse protection short-circuit protection /over current protection
Display technology parameter with 7 inch touch screen
Rs485 remote communication and data transmission(optional)
Model: MP- 40 / 50 / 60
/
/
40 A
50 A
60 A
Charging Mode
MPPT Automatic Maximum Power Point Tracking
Charging Method
Three stages : Constant Current ( MPPT), Balanced Charging,
Floating Charge
System Type
48 V/ 60 V/ 72 V/96V
Automatic Identification/ Manual Setting
System Identification Voltage Range

48 V System
DC36-60V
60V System
Manual Setting
72V System
Manual Setting
96 V System
DC 72 V- DC 120 V
Soft Start Time
48 /60/72/96V
≤10 s
Dynamic Response Recovery Time
48 /60/72/96V

≤500 us
Static Power
48 /60/72/96V
≤2 W
Machine Efficiency
48 /60/72/96V
≥96 . 5 %
PV Module Utilization
48 /60/72/96V
≤99 . 97 %
Input Characteristics
MPPT Operating

Voltage Range
48V System
DC 65V- DC 150 V
72 V System
DC 80V- DC 150 V
96 V System
DC 130 V- DC 180 V


Input Low Voltage
Protection Point
48V System
DC 60 V
72 V System
DC 74 V
96 V System
DC 120V


Input Low Voltage
Recovery Point
48V System
DC 65 V
72 V System
DC 80V
96 V System
DC 130 V
Limit Input Voltage
48 V/ 60 V/ 72 V/96V
48 V/ 60 V/ 72 V/96V (160V) ,96V (235V)
Overvoltage Protection
48 V/ 60 V/ 72 V/96V
48 V/ 60 V/ 72 V/96V (150V) ,96V (230V)
Overvoltage Recovery
48 V/ 60 V/ 72 V/96V
48 V/ 60 V/ 72 V/96V (145V) ,96V (225V)
Maximum Solar
Panel Input Power
48 V System
/
/
2100 W
2650W
3150 W
72 V System
/
/
3200 W
4000 W
4800 W
96 V System
//
/
4250 W
5300 W
6400 W
Output Characteristics
Optional Battery Type (Default is lead - acid maintenance- free
battery)
48 V/ 60 V/ 72 V/96V96V
Lead- acid maintenance- free Battery, G e l Battery, Liquid Battery, Lithium Battery ( Can also be customized for other types of
battery)
