Home /Products/Solar Power Inverters/No need to consider whether battery match 10Kw inverter home all use in one energy storage system with Lifepo4 Solar Hybrid Inverter Single Phase Modular 220V Lithium Battery Pack

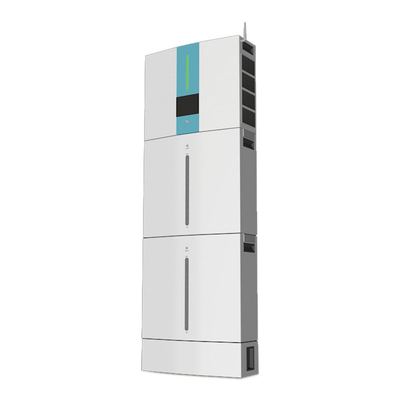

No need to consider whether battery match 10Kw inverter home all use in one energy storage system with Lifepo4 Solar Hybrid Inverter Single Phase Modular 220V Lithium Battery Pack

1.0 piece
MOQ
No need to consider whether battery match 10Kw inverter home all use in one energy storage system with Lifepo4 Solar Hybrid Inverter Single Phase Modular 220V Lithium Battery Pack
Features Gallery Product Description Request A Quote
Features
Specifications
Features: No Need To Consider Whether The Battery Matches The Inverter
Model Number: B03-Y5510A
Battery Type: Inverter And Lithium Battery Set, Lithium Ion, LiFePO4
Product Name: Inverter And Lithium Battery Set
Warranty: 5 Years Enable To Prolong
Cycle Life: ≥8000 Times
Application: Solar Energy Storage Systems/Electric Power Systems
Material: LifePo4 Lithium Iron Battery
OEM/ODM: Welcomed
Nominal Voltage: 48V-56V DC
Capacity: 200Ah-400Ah
Basic Infomation
Model Number: B03-Y5510A
Payment & Shipping Terms
Packaging Details: Thickened anti-fall carton customizable,
Product Description
Best Selling Products
Products Description
Model
B03-Y5510A
B03-Y5520A
Inverter
Maximum PV Input Power
6500 W
6500 W
Rated Output Power
5500 W
5500 W
Maximum Charging Power
5500 W
5500 W
Grid connection certification
CE-LVD/IEC62109-1/-2IEC62040-1;VDE-AR-N4105,VDE0126-1-1，AS4777.2;NRS097-2-1:2017;EN50438:2013;G99/1-6:2020
PV INPUT (DC)
Nominal DC Voltage
360 VDC
360 VDC
Maximum DC Voltage
500 VDC
500 VDC
Start-Up Voltage
116 VDC
116 VDC
Initial Feeding Voltage
150 VDC
150 VDC
MPP Voltage Range
120 VDC ~ 450 VDC
120 VDC ~ 450 VDC
Number of MPPTrackers
2
2
Maximum Input Current
2 x 13 A
2 x 13 A
GRID OUTPUT (AC)
GRID OUTPUT (AC)
208 / 220 / 230 / 240 VAC
Output Voltage Range
184 - 264.5 VAC*
Maximum Output Current
23.9 A*
Max Conversion Effificiency (DC/AC)
96%
European Effificiency @ Vnominal
95%
AC INPUT
AC Start-Up Voltage
120-140VAC
Auto Restart Voltage
180VAC
Acceptable Input Voltage Range
170 - 280 VAC
Maximum AC Input Current
40 A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
208 / 220 / 230 / 240 VAC
Effificiency(DCtoAC)
93%
BATTERY Technical Specifications
Nominal DC Voltage
51.2 VDC
Battery Capacity
200Ah
400Ah(200Ah*2)
Maximum operating current
120 A
200 A
Store energy
10.24KWH
20.48KWH
Voltage Range(Vdc)
48-56 V
Protection
BMS, Breaker,Inverter
Inner Resistance
<20 m Ohm
Cycle Life
<6000Cycles/80%DOD@25℃
Security certication
UN38.3,MSDS,IEC62619(CB),CE-EMC,UL1973
System parameters
Dimension, D x W x H
214*621*1205(mm)
214*621*1755(mm)
Operating temperature/humidity range
0~55℃/0-80%RH
Protocol
WIFI and RS232
These are Stackable Modular Battery 48V 51.2V 10KWH 20KWH 30KWH 40KWH 50KWH LiFePO4 Battery Solar Home Energy Storage Battery
Stackable LiFePO4 10KWH 20KWH 30KWH 40KWH 50KWH Battery vertical Cabinet: 1>One Module 10KWH 51.2V 200AH LiFePO4 Battery , 2pcs Stackable modules in parallel will get 20KWH,3PCS Stackable modules in parallel will get 30KWH...unit max each cabinet contains 5pcs( 50kwh） 2> Battery Support smart communication function RS485/ RS232/ CANbus and can compatible with most of famous Hybrid off grid inverters / MPPT controllers 3> Built in accurate coulomb counter (LCD display), ON/OFF Switch, Handles，bracket and movable base. 4>For the bracket, we customized the high quality unique metal bracket which is more stable, safely and very firm to hold the power wall lifepo4 battery install on the wall and ground.
From Buyer Image
Packing and Shipping
Delivery time :
Normally delivery within 7-20days, but can arrange in advance if order confirm or priduce faster according to
quanity or other reason.

Payment:
1.We accept T/T , PAYPAL , Western Union, Cash and so on.
2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy.
3. FOB , EXW and CIF all are available.
4. Samples can accept Paypal.
5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.

Shipping way:
DHL, UPS, Fedex, Special Line, Sea shipping, Customer own forwarder.
Company Profile
Testing Equipment
FAQ
Q. Can I print my LOGO on it？A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 6 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have？
A: Warranty: 5 years,we would provide repair or replacement with the warranty period.if any quality problems on our side in this
period, Please show us video or photos for confirm before we sent solution.

Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.

Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the
balance before shipment

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
