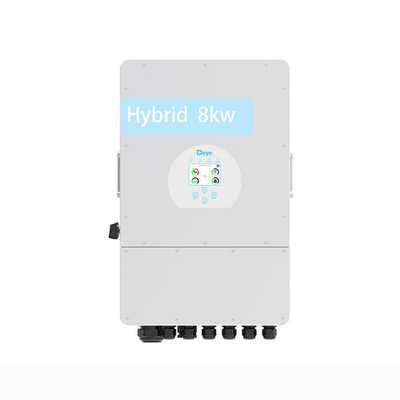

12kw Deye hybrid inverter 8kw solar inverter power charger system single phase 10kw 3 phase inverter solar 420*670*233mm

9 sets
MOQ
12kw Deye hybrid inverter 8kw solar inverter power charger system single phase 10kw 3 phase inverter solar 420*670*233mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SUN-8K-SG01LP1-EU
Input Voltage: AC220V
Output Voltage: 125-425V
Output Current: 24-35A
Output Frequency: 50/60Hz
Output Type: Single
Size: 420*670*233mm
Type: DC/AC Inverters
Inverter Efficiency: 97.6%
Certificate: CE;EMC;IVD
Warranty: 5 YEARS
Weight: 32kg
Ambient Temperature:: -25~60℃
Battery Type: Lead-acid Or Lithium-ion
Protection: IP65
Battery Voltage Range (V): 40~60V
Basic Infomation
Certification: CE;EMC;IVD
Model Number: SUN-8K-SG01LP1-EU
Payment & Shipping Terms
Packaging Details: Deye Three Phase Hybrid Inverter 5KW 6KW 8KW 10KW 12KW Solar Inverter with Battery 1. Individual box packaging 2. Large quantities can be packed in wooden pallets or cartons 3. Packaging can be customized according to customer needs
Supply Ability: 1000 Set/Sets per Week
Product Description
Product Description
Deye Three Phase Hybrid InverterSUN-8/10/12K-SG04LP3-EU | 8-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN-6/8/10/12K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and
reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports
three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port
for BMS,x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Specification
Model
SUN-8K-SG04LP3
SUN-10K-SG04LP3
SUN-12K-SG04LP3
Battery Input Data
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
40~60V
Max. Charging Current (A)
190A
210A
240A
Max. Discharging Current (A)
190A
210A
240A
Charging Curve
3 Stages / Equalization
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)
10400W
13000W
15600W
Rated PV Input Voltage (V)
550V (150V~800V)
MPPT Range (V)
200V-650V
Start-up Voltage (V)
160V
Full Load DC Voltage Range
350-650
PV Input Current (A)
13+13
26+13
No.of MPPT Trackers
2
No.of Strings Per MPPT Tracker
1+1
2+1
AC Output Data
Rated AC Output and UPS Power (W)
8000W
10000W
12000W
Max. AC Output Power (W)
8800W
11000W
12000W
Peak Power (off grid)
2 times of rated power, 10 S
AC Output Rated Current (A)
12A
15A
18A
Max. AC Current (A)
18A
23A
27A
Max. Continuous AC Passthrough (A)
50A
Output Frequency and Voltage
50/60Hz; 230/400Vac (Three phase)
Grid Type
Current Harmonic Distortion
Current Harmonic Distortion
THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency
97.60%
Euro Efficiency
97.00%
MPPT Efficiency
99.90%
Protection
PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor
Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Output Over Voltage
Protection
Surge protection
DC Type II / AC Type II
Certififications and Standards
Grid Regulation
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
Safety EMC / Standard
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
General Data
Operating Temperature Range (℃ )
-25~60℃ , >45℃ Derating
Cooling
Smart cooling
Noise (dB)
<30 dB
Communication with BMS
RS485; CAN
Weight (kg)
36.8
Size (mm)
422W×658H×281D
Protection Degree
IP65
Installation Style
Wall-mounted
Warranty
5 years
Why Choose Deye Solar inverters?
1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.

2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters

3.All Deye Solar inverters can be found in PV Solar system

4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company

5.All Deye Solar inverters are equipped with Standard WiFi communication

6.Deye Solar inverters are equipped with 25-year data storage capabiliity (Internal SD Card)
System Architechture

Deye Three Phase Hybrid Inverter

SUN-8/10/12K-SG01LP3 | 8-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery
SUN 8/10/12K-SG is brand new threephase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density,
this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the
application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1DRM port, which makes the system smart and flexible.
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. - Generator or Utility - PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
① DC Breaker for battery ② AC Breaker for grid and backup load
SUN 8K-SG: 250A DC breaker SUN 8K-SG: 80A AC breakerSUN 10K-SG:300A DC breaker SUN 10K-SG:80A AC breaker
SUN 12K-SG:300A DC breaker SUN 12K-SG:80A AC breaker

③ AC Breaker for grid and backup load ④ AC Breaker for home load
SUN 8K-SG: 20A AC breaker Depends on household loadsSUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
Our factory

Ningbo Deye Inverter Technology Co., Ltd is dedicated to providing complete photovoltaic power system solutions, including residential and commercial power plants solutions. Also, Deye offers the right device for each application: for all module types, for grid-connection and stand-alone grids as well hybrid inverter system, for small house systems and commercial systems in the Megawatt range. Among them, PV grid-connected inverter power range from 1.5-110kW, Hybrid inverter 3kW-12kW, and microinverter 300W-2000W.
