Home /Products/Solar Power Inverters/Sunpal Low Frequency Hybrid Solar Power System Home Solar Inverter 48V 5Kw 5Kva 5.5Kw On Grid Off Grid Parallel

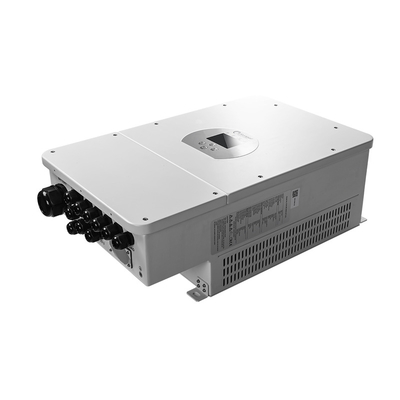

Sunpal Low Frequency Hybrid Solar Power System Home Solar Inverter 48V 5Kw 5Kva 5.5Kw On Grid Off Grid Parallel

50 pieces
MOQ
Sunpal Low Frequency Hybrid Solar Power System Home Solar Inverter 48V 5Kw 5Kva 5.5Kw On Grid Off Grid Parallel
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SUN-5K-SG01LP1 -US/EU
Input Voltage: 125V-425V
Output Voltage: 120Vac&240Vac
Output Current: 20.8A
Output Frequency: 50/60Hz
Output Type: Single
Size: 680*420*233mm
Type: DC/AC Inverters
Inverter Efficiency: 99.90%
Certificate: CE TUV, ISO 9001/CE/IEC/TUV
Warranty: 5, 5 Years
Weight: 32KG
Product Name: Off-grid Hybrid Inverter
Protection: Overload
Application: Solar Power System Home
Battery Type: Lead Acid \ Lithium \ Gel
Communication: RS485/WiFi (optional)/GPRS (optional)/DRM(Australia)
Output Waveform: Pure Sine Wave Output
MPPT Efficiency: 98-99%
MPPT Voltage Range: 125-425Vdc
Basic Infomation
Certification: CE TUV, ISO 9001/CE/IEC/TUV
Model Number: SUN-5K-SG01LP1 -US/EU
Payment & Shipping Terms
Packaging Details: Standard export carton
Supply Ability: 10000 Piece/Pieces per Month
Product Description
Product Description
Specification
Technical Data
SUN-5K-SG01LP1 -US/EU
SUN-8K-SG01LP1 -US/EU







Battery Input Data
Battery Type
Lead-acid or Li-lon
Battery Voltage Range (V)
40V-60V
Max.Charging Current (A)
120A
190A
Max.Discharging Current (A)
120A
190A
Charging Curve
3 Stages/Equalization
External Temperature Sensor
Optional
Charging Strategy for Li-Ion Battery
Self-adaption to BMS






PV String Input Data
Max.DC Input Power (W)
6500W
10400W
Max.DC Input Voltage (V)
500V
MPPT Range (V)
125V-425V
Start-up Voltage (V)
150V
Max.Input Current (A)
11A+11A
18A+18A
No.of MPPT Trackers
2
2
No.of Strings Per MPPT Tracker
1/1
2/2









AC Output Data
Rated AC Output and UPS Power (W)
5000W
8000W
Peak Power(off grid)
2 times of rated power, 10 S
Max.AC Current(A)
20.8A
33A
Output Frequency and Voltage
50/60Hz; 120Vac&240Vac(split phase), 230Vac(single phase)
Grid Type
Split phase/Single Phase
Current Harmonic Distortion
THD<3% (Linear load<1.5%)
Details Images
Sunpal Project Case
Company Profile
Get Free Quote Now
FAQ
1. who are we?
We are based in Anhui, China, start from 2022,sell to North America(20.00%),Western Europe(12.00%),Southern Europe(10.00%),Southeast Asia(9.00%),South America(7.00%),Eastern Europe(7.00%),Central America(6.00%),Eastern Asia(6.00%),Northern Europe(6.00%),Mid East(5.00%),Oceania(4.00%),Africa(4.00%),South Asia(4.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Panel,Solar Inverter,Solar System,Solar Batteries,Energy Storage System

4. why should you buy from us not from other suppliers?
With over 15 years of combined solar energy experience, Sunpal Power continues to be part of the renewable energy transition by helping you harvest clean energy at any given location in the world.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:Chinese,Spanish,French
