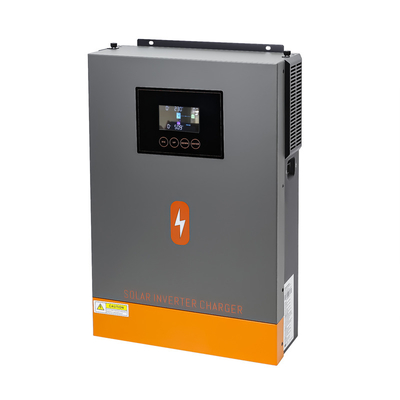

3600W6200W Solar Inverter 120A Pure Cyclotrons Wave Off Grid Hybrid Machine 420*310*120mm

1 piece
MOQ
3600W6200W Solar Inverter 120A Pure Cyclotrons Wave Off Grid Hybrid Machine 420*310*120mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: POW-HVM3.6M-24V/POW-HVM6.2M-48V
Input Voltage: 90-280VAC OR 170-280VAC
Output Voltage: 230Vac±5%
Output Frequency: 50Hz/ 60Hz
Output Type: Single
Size: 420*310*120mm
Type: DC/AC Inverters
Inverter Efficiency: 93%
Certificate: CE
Warranty: 12 Months
Weight: 13KG
Basic Infomation
Certification: CE
Model Number: POW-HVM3.6M-24V/POW-HVM6.2M-48V
Payment & Shipping Terms
Product Description
Products Description

3600W/6200W/500V PV maximum voltage/120A MPPT charging current/24V, 48V battery system/220V output voltage off grid hybrid machine

features：
1. Pure sine wave solar inverter
2. Output power factor 1.0
3. WIFI&GPRS is applicable to IOS and Android, and WiFi APP can have no network connection (it needs 250 megabytes of mobile memory), which is more suitable for remote countries and regions.
4. The inverter operates without battery
5. Built in 120A MPPT solar charger, mains charging current 100A
6. High PV input voltage range (90~450VDC)
7. Built in anti dusk kit for harsh environments
8. Intelligent battery charging design to optimize battery life
- One touch factory reset
-With lithium battery activation function (PV only)
-Colorful light shows the load status. Purple is PV load. Red is battery load. Blue is mains load
-Adjustable parallel and off network working mode
-The grid connected charging current can be adjusted to 2A-16A, and the amplitude of each adjustment is 2A
-The maximum load power set by the machine software is 6200W
Model
POW-HVM3.6M-24V
POW-HVM6.2M-48V
Phase
1-phase
Maximum PV Input Power
6000W
Rated Output Power
3600W
6200W
Maximum Charging Power
6000W
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/initial Feeding Voltage
120VDC
MPPT Voltage Range
90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195.5-253VAC
Nominal Output Current
15.7A 26.1A
Power Factor
>0.9
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)
97%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Anto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC OR170-280VAC
Maximum AC Input Current
30A
40A
PV Input(DC)
Nominal DC Voltage
500VDC
MPPT Voltage Range
90VDC-450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
24VDC 48VDC
Output Waveform
Pure sine wave
Efficiency(DC to AC)
94%
HYBRID OPERATION
PV INPUT(DC)
>0.9
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/initial Feeding Voltage
120VDC
MPPT Voltage Range
90VDC-450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195.5-253VAC
Nominal Output Current
15.7A 26.1 A
AC INPUT
AC Start-up Voltage/Anto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC OR170-280VAC
Maximum AC Input Current
30A
40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Efficiency (DC to AC)
94%
BATTERY & CHARGE
Nominal DC Voltage
24VDC
48VDC
Maximum Solar Charging Current
120A
Maximum AC Charging Current
80A
Maximum Charging Current
120A
GENERAL
PHYSICAL
Dimension D *W *H
420*310*120
Net Weight(kgs)
11
13
INTERFACE
Communication Port
RS232/WIFI/BMS
ENVIRONMENT
Humidity
0-90%
Operating Temperature
-10 to 50 °C
