Home /Products/Micro Solar Inverters/Deye 600G3-EU-230 600W Micro Inverter SUN with WLAN for Solar Panel 212W*230H*40D

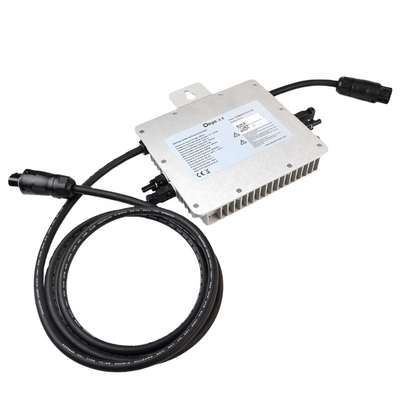

Deye 600G3-EU-230 600W Micro Inverter SUN with WLAN for Solar Panel 212W*230H*40D

100 pieces
MOQ
Deye 600G3-EU-230 600W Micro Inverter SUN with WLAN for Solar Panel 212W*230H*40D
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SUN600G3-EU-230
Input Voltage: 60V
Output Voltage: 230V
Output Current: 4.4A
Output Frequency: 50 / 60Hz
Output Type: Single
Size: 212W*230H*40D
Type: DC/DC Converters
Inverter Efficiency: 96.5%
Certificate: CE/VDE/EN/UNE/NBR/IEC
Warranty: 10 Years
Weight: 3.15KG
Product Name: Micro Solar Inverter
Communication:: WIFI / Zigbee
Cooling:: Natural Cooling
Power Factor:: >0.99
MPPT Voltage Range:: 25~55V
No.of MPP Trackers:: 2
Max. Input Current:: 2*13A
Night Time Power Consumption:: 50mW
Enclosure Environmental Rating:: IP67
Rated Power: 600W/800W/1000W
Basic Infomation
Certification: CE/VDE/EN/UNE/NBR/IEC
Model Number: SUN600G3-EU-230
Payment & Shipping Terms
Packaging Details: Micro Inverter 4pcs/carton
Supply Ability: 50000 Piece/Pieces per Month Micro Inverter
Product Description
Deye micro inverter SUN- 600G3-EU-230 600W with WLAN for solar panel
Product Description
Specification
Model
SUN600G3-EU-230
SUN800G3-EU-230
SUN1000G3-EU-230
Input Data (DC)
Recommended input Power (STC)
210~400W (2 Pieces)
210~500W (2 Pieces)
210~600W (2 Pieces)
Maximum input DC Voltage
60V
MPPT Voltage Range
25~55V
Full Load DC Voltage Range (V)
24.5~55V
33~55V
40~55V
Max. DC Short Circuit Current
2×19.5A
Max. input Current
2×13A
No.of MPP Trackers
2
No.of Strings per MPP Tracker
1
Output Data (AC)
Rated output Power
600W
800W
1000W
Rated output Current
2.6A
3.5A
4.4A
Nominal Voltage / Range (this may vary with grid standards)
230V/ 0.85Un-1.1Un
Nominal Frequency / Range
50 / 60Hz
Extended Frequency / Range
45~55Hz / 55~65Hz
Power Factor
>0.99
Maximum units per branch
8
6
5
Efficiency
CEC Weighted Efficiency
95%
Peak Inverter Efficiency
96.5%
Static MPPT Efficiency
99%
Night Time Power Consumption
50mW
Mechanical Data
Ambient Temperature Range
-40~65℃
Size (mm)
212W×230H×40D (Without mounting bracket and cable)
Weight (kg)
3.15
Cooling
Natural cooling
Enclosure Environmental Rating
IP67
Features
Compatibility
Compatible with 60~72 cell PV modules
Communication
WIFI / Zigbee
Grid Connection Standard
VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard
UL 1741, IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-2, IEC61000-3-3
Warranty
10 years
Packing & Delivery
Packing
4pcs per carton
Payment term
by TT
Shipping way
by express,by sea,by air
Lead time
about 7-10 working days after received the payment
FAQ
Q1: Can the product be shipped to my area？
A1: We export to most countries/regions (Centre/South America, EMEA, SEA, SSA, AU). We will check and confirm for you after you provide the region.

Q2: What about the lead time?
A2: 7-10 working days for 100pcs

Q3: How can I make payment?
A3:100% TT .

Q4: What is the mode of transport？
A4: International section is generally sea transport, after entry we will use multimodal transport of rail, barge.

Q5: what’s the warranty?
A5:1years enhanced product warranty on materials and workmanship
