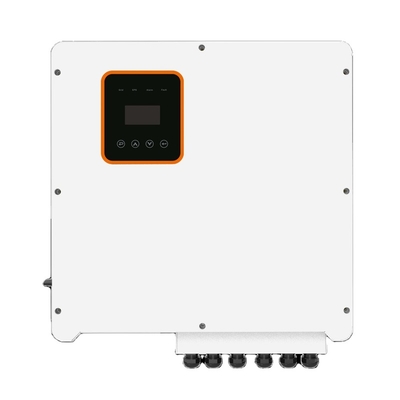

Home /Products/Solar Power Inverters/Solar System Factory Direct Sales Deye Growatt Hybrid Inverter 10k IP65 Off Grid Solar Inverter Three Phase Output

Solar System Factory Direct Sales Deye Growatt Hybrid Inverter 10k IP65 Off Grid Solar Inverter Three Phase Output

1 unit
MOQ
Solar System Factory Direct Sales Deye Growatt Hybrid Inverter 10k IP65 Off Grid Solar Inverter Three Phase Output
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: BD10KTL-RH3
Input Voltage: 125~600V
Output Voltage: 400V, 3W+N+PE
Output Current: 12.7A
Output Frequency: 50/60Hz
Output Type: Three Phase
Size: 530*600*200MM
Type: DC/AC Inverters
Inverter Efficiency: 97.5%
Certificate: CE TUV
Warranty: 5 Year, 5 Years, 5 Years
Weight: 29KG
Application: Solar System
Protection: IP65
Rated Power: 8000VA/8000W
OEM/ODM: Acceptable
Color: White
Basic Infomation
Certification: CE TUV
Model Number: BD10KTL-RH3
Payment & Shipping Terms
Product Description
Product packaging
BD8KTR-RH3
BD10KTR-RH3
BD12KTR-RH3
Input (PV)
Max. PV Input Power
10.4kW
13kW
15.6kW
Max. PV Input Voltage
1000V
Max. Current per MPPT
12.5A
MPP Voltage Range
180V 〜850V
Number of MPP Trackers
2
String per MPPT
1
Output (AC)
Max. Output Current
12.7A
15.9A
19.1A
Rated Output Power
8.8kVA
11kVA
13.2kVA
Rated Voltage
400V, 3L + N + PE
Frequency
50Hz/60Hz
Power Factor
0.8 lagging〜0.8 leading
THDi
< 3%
Output (EPS)
Max. Output Power
8.8kVA
11kVA
13.2kVA
Rated Voltage
400Vac
Rated Current
12.7A
15.9A
19.1A
Overload Capacity
110%, 30S / 120%, 10S / 150%, 0.02S
Rated Frequency
50Hz/60Hz
Automatic Switching Time
< 20ms
THDu
< 2%
Battery
Battery Voltage Range
125V〜600V
Max. Charging Voltage
600V
Full Battery Voltage
210V
270V
250V
Max. Charge / Discharge Current
40A
40A
50A
Battery Type
Lithium / Lead-acid
Communication
CAN / RS485
Efficiency
Max. DC Efficiency
97.90%
98.20%
98.20%
European Efficiency
97.20%
97.50%
97.50%
MPPT Efficiency
99.50%
99.50%
99.50%
Battery Charge / Discharge Efficiency
96.60%
96.70%
96.80%
Communication
Display
LCD
Communication
Standard: RS485 / CAN / DRM
Optional: WiFi / 4G
Standard Compliance
Certificates
CE, TUV
General data
Dimensions (W x H x D)
530 X 600 X 200 mm
Weight
29kg
Operation Temperature
-25°C 〜+60°C
Cooling Method
Natural Cooling
Protection Degree
IP65
Noise Emission
< 35dB
Max. Operating Altitude
2000m
Relative Humidity
0〜95% (non-condensing)
Topology
Transformerless
Standby Power Consumption
< 3W
Company Profile
FAQ
Q1: Can I get one for sample?
A1:Yes, we accept sample order or trial order for testing first.

Q2: What's the price and MOQ?
A2:Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.

Q3:What's you delivery time?
A3:It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order

Q4: How about your payment and shipment?
A4:Payment: We accept T/T, Western Union,Paypal etc. terms of payment. Shipment: For sample order, we use DHL, TNT, FEDEX, EMS
etc.,for batch order, by sea or by air( through our forward)

Q5:How about your warranty?
A5:Normally,we provide1 year warranty,and whole life technical support.

Q6.Do you have you own factory?
A6:Yes,we are leading manufacturer mainly in off grid solar power inverter,solar charge controller and systems ect.for about 12 years.
