Home /Products/Solar Power Inverters/SAKO 2021 hot sale home inverter 3.5kw solar hybrid inverter SUNON PRO 3.5KW with 100A MPPT inside, support working without battery

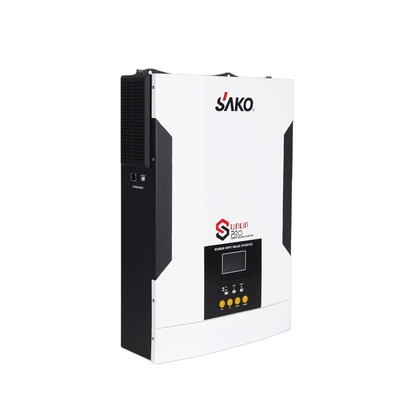

SAKO 2021 hot sale home inverter 3.5kw solar hybrid inverter SUNON PRO 3.5KW with 100A MPPT inside, support working without battery

1 Piece
MOQ
$287.00(1 - 5 Pieces) $273.00(6 - 99 Pieces) $260.00(>=100 Pieces)
Price
SAKO 2021 hot sale home inverter 3.5kw solar hybrid inverter SUNON PRO 3.5KW with 100A MPPT inside, support working without battery
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3months-1year
Free Installation Service: No
Model Number: SUNON PRO 3.5KW
Application: Home, Commercial, Industrial
Solar Panel Type: Monocrystalline Silicon, Polycrystalline Silicon
Battery Type: Lead-Acid, Lithium Ion
Controller Type: MPPT
Mounting Type: Ground Mounting, Roof Mounting, Carport Mounting, BIPV Mounting
Load Power (W): 3500W, 3500W
Output Voltage (V): 220VAC/230VAC, 220VAC /230 VAC
Output Frequency: 50HZ60HZ
Work Time (h): 24 Hours
Certificate: CE,CB
Pre-sales Project Design: Y
Nominal DC Voltage: 24VDC
Max. PV Array Power: 5000W
PV Array MPPT Voltage Range: 120~450VDC
Nominal PV VoltageVoltage: 300VDC
Max.Charging Current(AC + Solar): 100Amp MPPT
AC Input Voltage: 230VAC
Input Frequency: 50Hz/60Hz (Auto Detection)
Efficiency (DC To AC)(Peak): 93%
Basic Infomation
Certification: CE,CB
Model Number: SUNON PRO 3.5KW
Payment & Shipping Terms
Packaging Details: Standard international paper box packing.
Product Description
Details Images
SAKO hot sell solar inverter 3.5kw hybrid inverter SUNON PRO 3.5KW supports batteryless work, 100A MPPT inside
Main Features
1. Pure Sine Wave MPPT Solar Inverter 2. With 100A MPPT Solar Charge Controller built-in 3. With Touch Button on the LCD display 4. Output Power Factor is 1.0 5. It can work with or without battery 6. With WIFI function optional 7. With high PV input voltage range(120-500VDC) 8. Smart battery charger and management for optimized battery performance 9. Cold Start function 10. Auto restart while AC is recovering
Model
SUNON PRO 3.5K
SUNON PRO 5.5K
The rated power
3500VA/3500W
5500VA/5500W
INPUT
Voltage
230VAC
Selectable Voltage Range
170-280VAC (UPS),90-280VAC (Appliances)
Frequnecy Range
50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Model)
230VAC ± 5%
Surge Power
7000VA
11000VA
Power factor
1.0
1.0
Efficiency(Peak)
> 90%
Transfer Time
10ms (UPS), 20ms (Appliances)
Wave form
Pure sine wave
No load current
1.0A
1.1A
BATTERY
Battery voltage
24VDC
48VDC
Low battery alarming voltage
22.0VDC
44.0VDC
Low battery cut off protection voltage
21VDC
42VDC
Low battery recovery voltage
23.0VDC
46.0VDC
Floating Charge Voltage
27VDC
54VDC
Overcharge Protection
32VDC
64VDC
MPPT SOLAR CHARGER & AC CHARGER
Maximum PV Array Power
5000W
6000W
MPPT Range Operation Vol
120-450VDC
120-450VDC
Maximum PV Array Open Circuit Vol.
500VDC
500VDC
Number of MPPT trackers / Max output current
100A
100A
Maxmum AC Charge Current
60A
60A
Maxmum Charge Current
100A
100A
Maxmum Efficiency
98%
BEST PANEL CONFIGUTATION
Maximum PV Array Power
5000W
6000W
Best Panel configuration
300Wp*9pcs*36V(2700Wp)*2Parallel
330Wp*9pcs*36V(2970Wp)*2Parallel
PHYSICAL
Products Dimension, D*W*H(mm)
481mm*313mm*117mm
481mm*313mm*117mm
Packing size, D*W*H(mm)
543mm*394mm*204mm
543mm*394mm*204mm
Net Weight (kgs)
9.8Kg
10.5Kg
G.W. kg
11.2Kg
11.8Kg
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operation Temperature
0℃-50℃
Recommend Products
Buyer Feedback
Company Profile
Our Partners
Product packaging
FAQ
Q 1.Would you accept to use our logo ? A:All of our products are accepted to print your logo on the enclosure and package box, it depends on the amount, from 200pcs to 1000pcs. Q 2.We want to know month capacity. A:20000-30000PCS per Month. Q 3.how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; Q 4. What kind of certificate you have ? A:CE/TUV/CE/ISO/CB/UL/ROHS certificates.etc. Q5. Are you a factory or trading company? Yes,we are factory, supplying OEM/ODM service. Q 6.How to pay for solar controller? A:We accept paypal, western union, T/T. If you have any good payment, we also can accept. Q 7.How to choose suitable inverter? A:If your load is resistive loads, such as: bulbs, you can choose a modified wave inverter. But if it is inductive loads and capacitive loads, we recommend using pure sine wave power inverter. Q8.How do I choose the size of the inverter? A:Different types of load demand for power are different. You can view the load power values to determine the size of the power inverter.
Q9.what can you buy from us? A:Solar Gel Battery,Lead Acid Battery,Solar Off-grid System,Lithium Battery,Battery Balancer,Solar Panel
