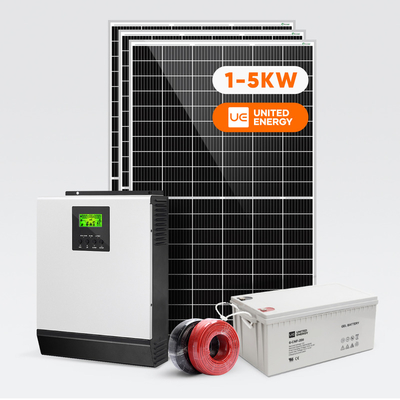

Home Sunpal Solar Energy System Off Grid 2Kw 3Kw 5Kw Hybrid Solar All In One Home System

1000 watts
MOQ
Home Sunpal Solar Energy System Off Grid 2Kw 3Kw 5Kw Hybrid Solar All In One Home System
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 3years
Free Installation Service: NO
Model Number: SP5KW-OFF
Application: Home
Solar Panel Type: Monocrystalline Silicon
Battery Type: Lead-Acid, Lithium Ion
Controller Type: MPPT, PWM
Load Power (W): 3KW, 5kW, 1-5KW
Output Voltage (V): 220v, 110-250V
Output Frequency: 50 60HZ
Work Time (h): Depend On Sunshine Duration
Certificate: CE
Pre-sales Project Design: Y
Mounting System: Pitched Roof (STD)
Wave Form: Pure Sine Wave
AC Voltage: 110-250V(Adjustable)
Peak Power: 6000W
Battery Voltage: 48VDC
Communication: RS485
Basic Infomation
Certification: CE
Model Number: SP5KW-OFF
Payment & Shipping Terms
Packaging Details: In well-protected Caron with pallet
Supply Ability: 10000 Watt/Watts per Day
Product Description
Products Description
What's Included:
Components
SP1KW-OFF
SP2KW-OFF
SP3KW-OFF
SP4KW-OFF
SP5KW-OFF
340W Mono Solar Panel
2 Piece
4 Piece
6 Piece
9 Piece
12 Piece
MC4 Y Branch
1 Pair
1 Pair
2 Pair
/
/
Combiner Box
/
/
/
3 in 1 out
3 in 1 out
Off Grid Inverter
1KW
2KW
3KW
4KW
5KW
12V 200AH Battery
1 Piece
2 Piece
4 Piece
4 Piece
8 Piece
DC Cable
100 Meters
100 Meters
200 Meters
200 Meters
200 Meters
MC4 Connector
4 Pair
4 Pair
6 Pair
6 Pair
8 Pair
Mounting System
Standards Pitched Roof ( Customized Optional)
Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.
Off Grid System Configuration
Mono Solar Panels
Peak Power Watts: 340W (SP340M-60H)
Maximum Power Voltage: 34.2V
Maximum Power Current: 9.94A
Open Circuit Voltage: 41.1V
Short Circuit Current: 10.6A
Dimensions:1698×1004×35 mm (66.85×39.53×1.38 inches)
Weight:18.7 kg (40.8 lb)

Off Grid Inverter
The Off Grid Inverter is Integrated with a MPPT Solar Charger Controller,a High Frequency Pure Sine Wave Inverter and a UPS
Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

Lead Acid GEL Battery
Capacity(kWh): 2.4
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%

DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 600VDC/1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,32A

DC Cable & MC4 Connector & Y Branch
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Our Factory
Packing & Delivery
Model
Single Set
20' Container Load
40' Container Load
SP1KW-OFF
1.7*0.45*1
30 Sets
70 Sets
SP2KW-OFF
1.7*0.6*1
12 Sets
28 Sets
SP3KW-OFF
1.7*0.6*1
12 Sets
28 Sets
SP4KW-OFF
1.7*0.75*1
10 Sets
24 Sets
SP5KW-OFF
1.7*0.75*1
5 Sets
12 Sets
