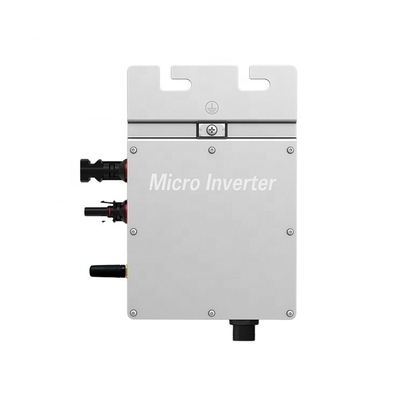

New Mini Inverter System 2022 On-grid 600W Small Link Solar Panel Micro On-grid Inverter 600w Intelligent Inverter

1 piece
MOQ
New Mini Inverter System 2022 On-grid 600W Small Link Solar Panel Micro On-grid Inverter 600w Intelligent Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: WVC-295
Input Voltage: 22-50V
Output Voltage: 80-140/180-280V
Output Current: 11.5A
Output Frequency: 50/60Hz
Output Type: Single
Size: 245*202*60mm
Type: DC/AC Inverters
Inverter Efficiency: 95%
Certificate: CE CQC, CE Rohs
Warranty: 20 Years, 20 Years Warranty
Weight: 1KG
Application: On-grid System
Inverter Type: On-grid Solar Power Inverter
Protection: IP67
Rated Power: 295W
Communication: WiFi/433Hz
Output Waveform: Pure Sine Wave Output
Frequency: 50/60HZ 3%
MPPT Efficiency: 99 %
Basic Infomation
Certification: CE CQC, CE Rohs
Model Number: WVC-295
Payment & Shipping Terms
Packaging Details: Carton
Product Description
Product Description
Specification
item
value
Place of Origin
China
Brand Name
OEM
Model Number
WVC-295
Input Voltage
22-50V
Output Voltage
80-140/180-280V
Output Current
11.5A
Output Frequency
50/60Hz
Output Type
Single
Size
245*202*60mm
Type
DC/AC Inverters
Inverter Efficiency
95%
Certificate
CE CQC
Warranty
20 Years
Weight
1KG
Certificate
CE Rohs
Warranty
20 Years warranty
Application
On-grid System
Inverter type
On-grid Solar Power Inverter
Protection
IP67
Rated power
295W
Communication
WiFi/433Hz
Output waveform
Pure Sine Wave Output
Frequency
50/60HZ 3%
MPPT Efficiency
99 %
TYPE
WVC-295

Peak power
1*300W

Output voltage
120/240V automatic identification

Solar panel Open circuit voltage range
30-60Voc

Peak power tracking voltage
22-60V

Minimum/ Maximum starting voltage
22-60V

Maximum DC short circuit current
13.6A

Maximum input working current
11.5A

Output voltage
120V
230V
Peak output power
300W
300W
Output rating
295W
295W
Rated output current
2.45W
1.28W
Range of nominal tension
85-160V
185-265V
Rated frequency range
47~52/57~62Hz

Efficiency
＞95%

Number of connections per circuit
15 （single）
30 （single）
MPPT efficiency
99.5%

Maximum output efficiency
95%

Night loss power
＜0.5W

THD (total harmonic distortion)
＜5%
Operating temperature
,-20℃~50℃
Waterproof
IP67 Nema4x
Power transmission mode
Reverse transmission, load priority
Monitoring system
APP/PC
Electromagnetic compatibility
EN50081.part1EN50082.part1.CSA
Power System Disturbance
EN61000-3-2 EN62109.UL STD.1741
Grid testing
DIN VDE0126 IEEE STD.1547.1 1547.A
Certification
CEC CE
Package
Unit set
Full container load (FCL)
Weight
0.88kg
14.56kg
Dimension
245*202*60mm
430*400*270mm
Packing & Delivery
Company Profile
FAQ
Q1. MOQ?
A:The MOQ from our company is 1 unit.

Q2. how can we guarantee quality?
A: Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q3.How long is your delivery time?
A:It depends on your quantity,but usually,7 days for sample order,30-45 days for batch order.

Q4. How about your after sales service?
A: Our quality warranty for 1-2 years,any parts will be shipped for free during warranty period.

Q5. Can I get one for sample?
A: Yes,we accept sample order ortrial order for testing
