Home /Products/Solar Power Inverters/Home Use Solar Power Efficiency Hybrid Solar Power System High Power Inverter

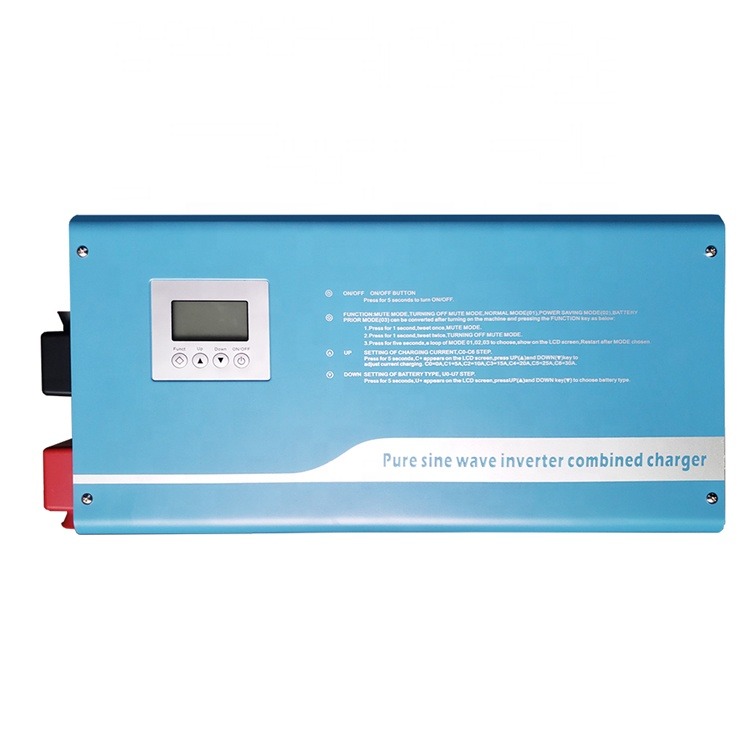

Home Use Solar Power Efficiency Hybrid Solar Power System High Power Inverter

1.0 set
MOQ
Home Use Solar Power Efficiency Hybrid Solar Power System High Power Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 3KW
Input Voltage: 24VDC
Output Voltage: 220VAC
Output Current: 13.6A
Output Frequency: 50/60HZ
Output Type: Single, Three Phase
Size: 486*248*179mm
Type: DC/AC Inverters
Inverter Efficiency: 0.85-0.92
Certificate: CE ROHS/ISO9001
Warranty: 12 Months
Weight: 22KGS
Product Name: High Efficiency Hybrid Solar Power Inverter
Keyword: Solar Power Inverter
Solar System Type: Hybrid Solar Power Inverter
Application: Home Use Solar Power System
Inverter Type: Low Frequency Inverter
Waveform: Pure Sine Wave
Protection: Overload, Short Circuit Protection
Rated Power: 3KW
Input Frequency: 45-65HZ
OEM: Acceptable
Basic Infomation
Certification: CE ROHS/ISO9001
Model Number: 3KW
Payment & Shipping Terms
Packaging Details: Standard export packaging/wooden packaging
Supply Ability: 50 Set/Sets per Month
Product Description
Product Description
Features:
* Double CPU intelligent control technology, excellent performance .
* The grid mode/energy-saving mode/battery mode could be set, application flexible.
* Charge current/battery type could be set, convenient and practical.
* Intelligent fan control, safe and reliable.
* Pure sine wave AC output, and be adapt to all kinds of loads.
* LCD display equipment parameter in real-time, operation status be clear at a glance.
* Output overload, short circuit protection, various of automatic protection and alarm warning.
Technical Parameters
Type: FT
1KW
1.5KW
2KW
3KW
4KW
5KW
6KW
Rated power
1000W
1500W
2000W
3000W
4000W
5000W
6000W


Battery
Rated voltage
12VD/24VDC /48VDC
24VDC/48VDC
48VDC/96VDC
Charge current
30A(default)-C0-C6 can be set
Battery type
U0-U7 can be set

Input
Voltage range
85-138VAC/170-275VAC
Frequency
45-65Hz






Output
Voltage range
50/60Hz±1% ( Inverter mode)
Frequency
110VAC/220VAC; ±5%( Inverter mode)
Output wave
Pure sine wave
Switching time
<10ms( traditional load)
Efficiency
>85% (80% Resistance load)
Overload
110-120%/30S; >160%/300ms;
Protection
Battery over voltage protection, battery under voltage protection, overload protection, short circuit protection, over temperature protection and more.
Operating ambient temperature
0-40ºC
Storage ambient temperature
-15 - +50ºC
Operating/storage ambient
0-90% no condensation
Machine size: L*W*H (mm)
480*222*182
655*248*182
Package size: L*W*H (mm)
560*290*235
735*316*235
Detailed Images

  • Display working status, operation button, convenient operation

Pure sine wave output wave
A cooling fan, AC output input Insurance seat
Packaging & Shipping
FAQ
Q1: Can I get one for sample?
A1: Yes, we accept sample order or trial order for testing first.

Q2: What's the price and MOQ?
A2: Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.

Q3: What's you delivery time?
A3: It depends on your quantity, but usually, 7 days for sample order, 30-45 days for batch order

Q4: How about your payment and shipment?
A4: Payment: We accept T/T, Western Union, Paypal etc. terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc., for batch order, by sea or by air( through our forward)

Q5: How about your warranty?
A5: Normally, we provide 1 year warranty,and whole life technical support.

Q6: Do you have you own factory?
A6: Yes, we are leading manufacturer mainly in off grid solar power inverter, solar charge controller and systems ect. for about 12 years.
