Home /Products/Micro Solar Inverters/Lianfa Inverters Converters Power Inverter 12v to 220v/110v with Charger 1kw 12v24v 40a 300w Micro 350w 100 x 300 x 444 (mm)

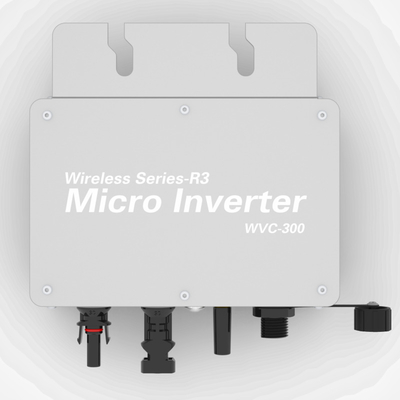

Lianfa Inverters Converters Power Inverter 12v to 220v/110v with Charger 1kw 12v24v 40a 300w Micro 350w 100 x 300 x 444 (mm)

1 piece
MOQ
$85.00(1 - 49 pieces) $77.00(50 - 199 pieces) $73.00(>=200 pieces)
Price
Lianfa Inverters Converters Power Inverter 12v to 220v/110v with Charger 1kw 12v24v 40a 300w Micro 350w 100 x 300 x 444 (mm)
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: WVC-300/WVC-350
Input Voltage: 220 VAC
Output Voltage: 220VAC
Output Current: 80A
Output Frequency: 50Hz/60Hz
Output Type: Single, DUAL
Size: 100 X 300 X 444 (mm)
Type: DC/AC Inverters
Inverter Efficiency: 98%
Certificate: CE Rohs
Warranty: 2 Years
Weight: 9kg/10kg
Basic Infomation
Certification: CE Rohs
Model Number: WVC-300/WVC-350
Payment & Shipping Terms
Packaging Details: In well protected carton with pallet
Product Description
Products Description
model
Recommend use panels Output voltage mode PV Open circuit voltage Operating voltage range Starting voltage range short-circuit
current Maximum working current
WVC-300
l*375Watt
120/230V Auto switch
30-54VOC
22-60V
22-60V
15A
13.7A
Output parameters
@120V
@230V
Output peak power
310Watt
310 Watt
Rated output power
300Watt
300Watt
Output current
2.5A
1.3A
AC voltage range
80-160VAC
180-280VAC
AC frequency range
48-51Hz/58-61Hz
48-51Hz/58-61Hz
Power factor
>95%
>95%
Number of branch connections.
15PCS(Single)
25PCS( Single)
Output efficiency
@120V
@230V
Static MPPT efficiency
99.5%
99.5%
Max output efficiency
95%
95%
Loss of power at night
<0.5W
<0.5W
Total current harmonics
<5%
<5%
Appearance and technical features
Temperature range
-40°C to +65°C
Size ( LxWxH )
165mmxl76mmx38mm
Net amount
0.82kg
Waterproof grade
Ip65 NEMA3R
Heat dissipation mode
Self-cooling
Communication mode
Wi-Fi
Power transmission mode
Reverse transmission,Load priority
monitoring system
APP
Electromagnetic Detection
EN61000-6-l:2007EN6100-6-3:2007+Al:2011+AC:2012
Power Grid standard
EN50549-1. EN 50549-2、NBR 16149:2013. UL1741
Power grid detection
IEC/EN 62109-1. IEC/EN 62109-2. IEC 62116、IEEE 1547
Certificate
CE, Patented technology
Packing weight
Specifications
Each (Packing)
Box(15PCS)
weight
1.28KG
19.5KG
Size
245x202x60mm
450x395x345mm
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Request Complete System
Company Profile
Why Choose Us
Project & Feedback
Packaging & Shipping
FAQ

Q1: What are your main products?

We mainly manufacture solar systems, solar panels, inverters, controllers, batteries and mounting systems and all related solar accessories.

Q2: Are you a factory or a trading company?

We are a factory with more than 18 years experience of manufacture solar energy series products. We are warmly welcome our customers visit our factory.

Q3: How does your factory conduct quality control?

We have a professional QC team will strictly control the quality. And we will only ship out the cargo after the inspection approved.

Q4: Can you support OEM and field installation?

Yes, we provide OEM and on-site installation, our engineers will go to the site to provide technical to solve the problems. We will also provide online support through WhatsApp/Wechat/phone/Email anytime.

Q5: How to install and use the solar system, can install it myself?

We have user’s manual and video guidance to show how to install and use the products. All of the step of solar system Disassembly, assembly, operation in the video will be sent to our customers.

Q6: Can you print our company logo on the nameplate and packaging?

Yes, we support custom design. Brand name, solar panel color, patterns are available for customization. Besides, we have packaging&printing business to assist the packaging&printing products to our customers.

Q7: How about the after-sales service?

Damage in transit will be resolved according to the contract terms. If there are any problems of product during warranty period, our engineers will firstly propose a solution according to the specific situation. It will be refunded or replaced for free if the product still has problems.

Q8: What if I don't have export experience?

We will suggest the best suitable trade terms to you and we have more than 10 cooperative forwarder agents that will help ship out cargo to your doorstep.
