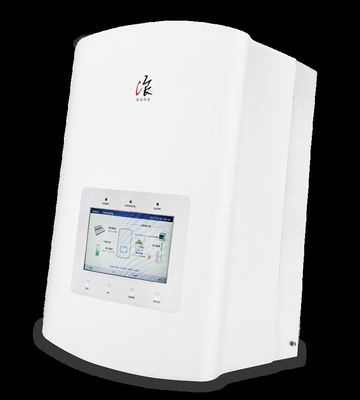

4kw on-grid 2 mppt solar inverter with cheap price solar inverter single phase 310W*543H*160D(mm)

1 Piece
MOQ
$632.00(1 - 4 Pieces) $527.00(>=5 Pieces)
Price
4kw on-grid 2 mppt solar inverter with cheap price solar inverter single phase 310W*543H*160D(mm)
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: 1P4K-4G
Input Voltage: 600V
Output Voltage: 160V-285V
Output Current: 17.4A
Output Frequency: 50/60HZ
Output Type: Single
Size: 310W*543H*160D(mm)
Type: DC/AC Inverters
Weight: 11.5kg
MPPT Voltage Range: 100V-500V
Operation Phase: Single
Integrated DC Switch: Optional
Ingress Protection: IP65
Max. Operation Altitude: 4000m
Designed Lifetime: >20years
DC Connection: MC-4mateable
AC Connection: IP67rated Plug
Display: LCD,2*20 Z.
Warranty: 5 Years Standard (extend To 20 Years)
Basic Infomation
Model Number: 1P4K-4G
Payment & Shipping Terms
Product Description
Product details

Solis-1P(2.5-6)K-4G


Features:



▶ Solis 1P 4G Single Phase Range


▶ High frequency switching technology - Smaller, smarter


▶ Dual MPPT design with precise MPPT algorithm


▶ Intergrated Export Power Manager(EPM)


▶ Over 98.1% Max. effciency


▶ RS485, WiFi/LAN/GPRS (optional) interface


▶ WiFi monitoring available - plus access to Android and Apple apps


Model:


Solis-1P2.5K-4G

Solis-1P3K-4G

Solis-1P3.6K-4G

Solis-1P4K-4G

Solis-1P4.6K-4G

Solis-1P5K-4G

Solis-1P6K-4G


Datasheet
Model Name
1P2.5K-4G
1P3K-4G
1P3.6K-4G
1P4K-4G
1P4.6K-4G
1P5K-4G
1P6K-4G
Input DC
Max. DC input power(kW)
3
3.5
4.2
4.6
5.3
5.8
6.6
Max. DC input voltage(V)
550
600
Start-up voltage(V)
60
120
MPPT voltage range(V)
50-450
90-520
Max. input current(A/B)
11A+11A
Max. Short Circuit current for each MPPT
17.2A+17.2A
MPPT number/Max input strings number
2/A:1; B:1
Output AC
Rated output power(kW)
2.5
3
3.6
4
4.6
5
6
Max. apparent output power(kVA)
2.8
3.3
4
4.4
5
5
6
Max. output power(kW)
2.8
3.3
4
4.4
5
5
6
Rated grid voltage(V)
220/230
Rated grid frequency(Hz)
50/60
Operation phase
Single Phase
Rated grid output current(A)
11.4/10.9
13.6/13
16/15.7
18.2/17.4
20.9/20
22.7/21.7
27.3
Max. output current(A)
13.3
15.7
16
21
23.8
25
27.3
Power Factor (at rated output power)
0.8leading ... 0.8lagging
THDi (at rated output power)
<3%
DC injection current
<0.5%In
Efficiency
Max. efficiency
97.8%
98.1%
EU efficiency
97.1%
97.3%
MPPT efficiency
>99.5%
Protection
DC reverse-polarity protection
Yes
Short circuit protection
Yes
Output over current protection
Yes
Output over voltage protection
Yes
Insulation resistance monitoring
Yes
Residual current detection
Yes
Surge protection
Yes
Grid monitoring
Yes
Islanding protection
Yes
Temperature protection
Yes
Integrated DC switch
Optional
General Data
Dimensions (mm)
310W*543H*160D
Weight (kg)
11.5
Topology
Transformerless
Self consumption (night)
<1W (Night)
Operating ambient temperature range
-25~60°C
Relative humidity
0~100%
Ingress protection
IP65
Noise emission(typical)
<20dBA
Cooling concept
Natural convection
Max. operation altitude
4000m
Designed lifetime
>20 years
Grid connection standard
EN50549, AS4777.2:2015, VDE0126-1-1, IEC61727, VDE4105-2018, G98, G99
Safety / EMC standard
IEC62109-1/-2, NBT32004-2018, EN61000-6-1, EN61000-6-3
Features
DC connection
MC4
AC connection
IP67 rated plug
Display
LCD, 2×20 Z.
Communication connections
4 Pin RS485 connector
Monitoring
WiFi or GPRS
Warranty
5 Years /10 Years /15 Years /20 Years
