Home /Products/Solar Hybrid Inverter/high frequency hybrid solar inverter 60A mppt 150VDC off grid solar inverter 3kva 2400W 543*394*240

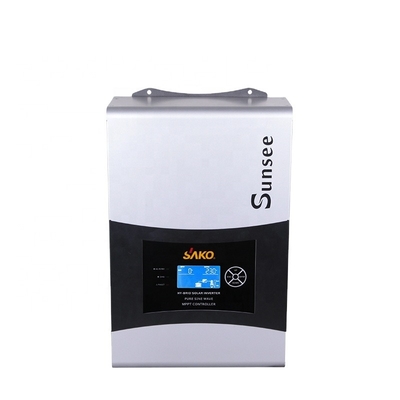

high frequency hybrid solar inverter 60A mppt 150VDC off grid solar inverter 3kva 2400W 543*394*240

1 Set
MOQ
$270.00(1 - 4 Sets) $257.00(5 - 99 Sets) $245.00(>=100 Sets)
Price
high frequency hybrid solar inverter 60A mppt 150VDC off grid solar inverter 3kva 2400W 543*394*240
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SUNSEE-3KVA
Input Voltage: 220v
Output Voltage: 220V
Output Current: 80A
Output Frequency: 50/60HZ
Output Type: Single
Size: 543*394*240
Inverter Efficiency: 93%
Certificate: Ce
Warranty: 1 Years
Weight: 10.1
Specification: Normal
Inbuilt Inverter: 2400W 24V
Inbuilt Solar Charger Controller: MPPT 24V 60A
Assorted Battery: 12V 200AH 2pcs
Assorted Cable: 6mm2, 50meters
All-in-one Cabinet: 1pc
Output: Pure Sine Wave
Load Power (W): 2400W
Output Voltage (V): 230V
Basic Infomation
Certification: ce
Model Number: SUNSEE-3KVA
Payment & Shipping Terms
Packaging Details: carton + packing tape
Supply Ability: 100 Piece/Pieces per Week
Product Description
Products Description
Main Features
1. Real MPPT charge controller built inside,15%-20% higher than PWM charge controller, use solar utmost. 2. Pure sine wave, high frequency technology,wall amounted design,light weighted and easy to operate 3. Selectable input voltage range for home appliances and personal computers 4. Selectable charging current based on applications 5. Configurable AC/Solar input priority via LCD setting 6. Compitable to grid power or generator power 7. Parallel operation with up to 6 units only available for 4KVA/5KVA 8. Auto restart while AC is recovering, auto charge and switch, unattended operation 9. Smart battery charger and management for optimized battery performance 10. Remote control panel is optional 11. High Efficient DC-To-AC Conversion.Minimizing Energy Loss and self power consumption 12. All around protection functions: Overload/short circuit protection/high voltage/low battery voltage/high temerature,etc.
Model
SUNSEE-3K
SUNSEE-5K
The rated power
3000VA/2400W
5000VA/4000W
INPUT
Voltage
230 VAC
Selectable Voltage Range
90-280VAC (For Personal Computers), 170-280VAC (For Home Appliances)
Frequnecy Range
50Hz/60Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Model)
230VAC ± 5%
Surge Power
6000VA
10000VA
Power factor
0.8
Efficiency(Peak)
> 90%
Transfer Time
10ms (For Personal Computers), 20ms (For Home Appliances)
Wave form
Pure sine wave
No load current
1.36A
1.15A
BATTERY
Battery voltage
24VDC
48VDC
Low battery alarming voltage
22.5VDC
43.5VDC
Low battery cut off protection voltage
20.5Vdc
41.00VDC
Low battery recovery voltage
23.5VDC
45.5VDC
Floating Charge Voltage
27VDC
54VDC
Overcharge Protection
32VDC
62VDC
MPPT SOLAR CHARGER & AC CHARGER
Maximum PV Array Power
1800W
4800W
MPPT Range Operation Vol
18-145VDC
36-115VDC
Maximum PV Array Open Circuit Vol.
145VDC
145VDC
Standby Power Consumption
2W
2W
Maxmum Solar Charge Current
60A
80A
Maxmum AC Charge Current
60A
60A
Maxmum Charge Current
120A
120A
Maxmum Efficiency
98%
BEST PANEL CONFIGUTATION
Max. generated from solar charger
60Amp, 1800W
80Amp, 4800W
Best Panel configuration
250Wp*6pcs(1500wp)
250Wp*18pcs (4500Wp)
PHYSICAL
Products Dimension, D*W*H(mm)
465*300*116
470.5*300*136
Packing size, D*W*H(mm)
543*394*205
549*394*224
Net Weight (kgs)
N.W.: 8.4, G.W.: 10.1KGS
N.W.: 10.81, G.W.: 12.86KGS
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operation Temperature
0℃-50℃
