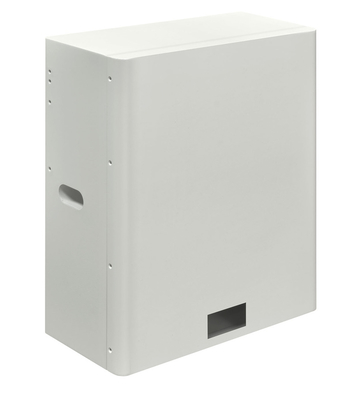

5KWh Rechargeable Battery Powerwall LiFePO4 Grid Lithium Ion Battery Wireless Charging Hybrid Solar Home System

1 unit
MOQ
5KWh Rechargeable Battery Powerwall LiFePO4 Grid Lithium Ion Battery Wireless Charging Hybrid Solar Home System
Features Gallery Product Description Request A Quote
Features
Specifications
Battery Type: LiFePO4, LiFePO4
Model Number: Helios 5
Voltage: 48V / 51.2V
Certificate: UN38.3
Cycle Life: 6000 Cycles @1C 90%DOD
Weight: 106kg
Warranty: 5 Years
Application: Home Solar Energy Storage System
Display: LCD+LED HD Touch Screen
Shipping: Sea Express/DDP/CIF
Inverter Type: Pure Sine Wave
Controller Type: NONE
Power Source: Solar Panel, Hybrid Inverter, Hybrid Inverter, DC Charger
Plug Type: SC 25
Special Features: Wireless Charging, Wall Mounted And Floor Mounted
Basic Infomation
Certification: UN38.3
Model Number: Helios 5
Payment & Shipping Terms
Packaging Details: DG Wooden packing - pallet - container Packaging also can be made by customer requirements
Supply Ability: 5000 Set/Sets per Month
Product Description
Battery Specification
Battery type
Helios 5
Helios 10
Helios 15
Nominal voltage
51.2V
51.2V
51.2V
Nominal capacity
100AH
200AH
300AH
Nominal energy
5.12KWH
10.24KWH
15.36KWH
Operation voltage
44-58.4 Vdc
44-58.4 Vdc
44-58.4 Vdc
Max charging voltage
58.4 Vdc
58.4 Vdc
58.4 Vdc
Suggested charging current
50A
100A
100A
Life cycles(80% DOD, 25°C)
6000 Cycles
6000 Cycles
6000 Cycles
Charging temperature
0~45 ℃
0~45 ℃
0~45 ℃
Discharging temperature
-20~60 ℃
-20~60 ℃
-20~60 ℃
Weight
58 Kg
90 Kg
135 Kg
Size
605*406*250 mm
820*455*265 mm
750*450*260 mm
Certification
CE /UN38.3/MSDS/DG
CE /UN38.3/MSDS/DG
CE /UN38.3/MSDS/DG
Period life
10~12 years
10~12 years
10~12 years
Warranty
5 years
5 years
5 years
Battery Details
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certification
FAQ

Q1: what's the life of Helios wall mounted battery?

A: 80% DOD more than 6000 cycles.

Q2: Can the battery be connented in parallel?

A: Yes,support in parallel for more than 16pcs.

Q3: Can the wall mounted battery work with my hybrid inverter?

A: Yes,it's suitable for all off grid and hybrid inverter.

Q4: What's the warranty of wall mounted battery?

A: 5 years,we support extended warranty service.

Q5: What's the battery output power?

A: 5 kw Per battery.

Q6: Does the wall mounted battery include inverter?

A: No,it doesn't,but it is more flexible to work with different brand of inverters preferred by customers.
