Home /Products/Wall Mounted Lithium Battery/Factory Long Life Cycle 18650 Lithium Battery Charger Wall Mounted 48v 50ah Solar Lithium Ion Battery Pack

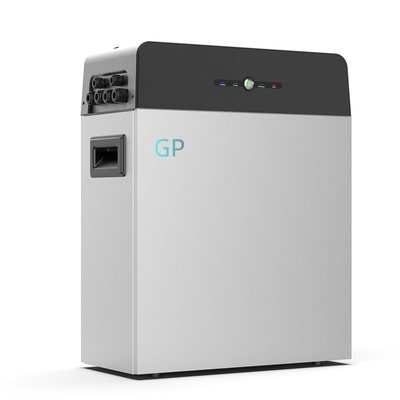

Factory Long Life Cycle 18650 Lithium Battery Charger Wall Mounted 48v 50ah Solar Lithium Ion Battery Pack

10.0 units
MOQ
Factory Long Life Cycle 18650 Lithium Battery Charger Wall Mounted 48v 50ah Solar Lithium Ion Battery Pack
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Long Cycle Life
Model Number: Battery Catalog (LFP5-10KWH) (GP-Uhome)
Battery Size: 18650
Weight: 55/66/96kg
The Charging Ratio: 3/2.7/4.6kw
The Discharge Rate: 100/120A
Storage Type: Indoor
Warranty: 10YEARS
Anode Material: LCO
Application: Power Tools, Home Appliances, Solar Energy Storage Systems, Home Solar Energy Storage System
Battery Type: Battery Catalog
Product Name: Battery Catalog (LFP5-10KWH) (GP-Uhome)
Nominal Capacity: 100ah
Cycle Life: Long Life Reliable LFP Cells, Cycle Life >6000 Cycles
Voltage: 48~56v/42~54V
Output Power: 7kW For 3s/10kW For 3s
Charge Voltage: 51.2/48V
Max. Charge / Discharge Current: 100A
Basic Infomation
Model Number: Battery catalog (LFP5-10KWH) (GP-Uhome)
Payment & Shipping Terms
Supply Ability: 1000 Box/Boxes per Month
Product Description
Products Description

Storage Battery LFP Series
Features and Advantages

-Reliable LFP cells -Easy installation & after sales service -High inverter compatibility -Digital monitoring system APP -Intelligent built- in BMS -Safety protection and easy move ->6,000 cycles at 90% DOD -Scalable up to 20-40kW(4 Parallel)
Product Paramenters
LFP5kWh
LFP5 .8kWh
LFP10kWh
Total Energy*
5kWh
5.8kWh
10kWh
Usable Energy(DC)*
4.6kWh
5.3kWh
9.2kWh
Nominal Dis-/Charge Power
3.0kW
2.75kW
4.6kW
Peak Power(Only Discharge)
7kW for 3s
7kW for 3s
10kW for 3s
Constant Current(Only Discharge) (10 Minutes)
100A
100A
120A
Voltage
48~56Vd.c
42~54Vd.c
48~56Vd.c
Nominal Voltage
51.2Vd.c
48Vd.c
51.2Vd.c
Nominal Current
60A
57A
90A
Max. Charge Voltage
57.6Vd.c
54.0Vd.c
57.6Vd.c
Weight
55kg
66kg
96kg
Dimension(mm)
525*537*238mm
525*635*238m mm
525*820*238mm
Max. recommended DOD
90%
Operating Condition
Indoor or outdoor
Operating Temperature
Charge
From 0~50℃

From 0~45℃
From 0~50℃
Discharge
From -10~55℃
From -10~55℃
WIFI Frequency Range
2400MHz~2483MHz
Humidity
4~100%(No condensed water)
Pollution Degree
3
Over Voltage Category
II
Cooling Type
Natural cooling
Case Material
Metal + Plastic
Color
Black+ Silver grey or White
Installation
Free standing
IP rating
IP 65
Protective Class
I
Max. Number of Parallel
4
Warranty
10 years
Life Span
>15 years
Communication
CAN/ RS485
Protection Mode
Triple hardware protection
Battery Protection
Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature

Safety
Cell UL 1973
Cell UL 1973
Cell UL 1973
CE
Pack TUV/CE
CE
Hazardous Material Classification
9
Transportation
UN 38.3
Testing conditions based on temperature 25℃at the beginning of life.
Project cases
Company Profile

Company profile

Hebei Great Power Technology Co., Ltd., as a powerful professional company in the field of renewable energy products, we have our own strong technical team of 150 staff with experience of more than 10 year to meet your specific requirement, we have two our own large-scale factories in Guangzhou and Shandong. Our products covers energy storage system, HHO hydrogen generators, hydrogen generating system, hydrogen fuel cell products, electric vehicle charging station , portable power station , Solar power systems etc. And the products have been sold around the world of more than 50 countries.
Our mission:
We Make a Green World !
We Make People Long Life!
Our Philosophy:
Pursing high quality and excellent performance,
To be the long term friends of our clients
Testing equipment
Certifications
FAQ
1. Are you a trading company or a manufacturer?
We a manufacturer, which is dedicated in renewable energy system integration and distribution for 15 years. We have been focusing on reliable and customized lithium battery modules, battery systems, large scale integrated energy storage systems , with a track record of 500Mwh in last three years.We have registered JV companies in UK and Bulgaria to make sure best cost,fast delivery and good service.

2. What is your quality control process?
Our factory have ISO9001 certification, from incoming materials to production, and then to delivery, there are corresponding QC control. Battery cells will be divided before assembly, and aging test will be conducted before delivery.

3.What is your warranty?
The cycle life of the battery pack can exceed 6000 cycles and warranty 10 Years, only energy storage usage.

4.Which inverters can they be compatible with?
Our lithium battery can interact with different inverters, such as Victron,DEYE,Megarevo,GOODWE,VOLTRONICS,GROWATT,K-STAR,SOLIS,STUDER,SMA.

5.What’s the lead time for mass production？
It depends on the actual situation. 48V100ah LFP battery pack,3-7 days with stock, if without stock, that will be depends on your order quantity, normally needs 20-25 days.

6. Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.

7.How can I be your distributor or service partner?
Yes,we can discuss about this. We need to know your target market, what application you want to cover, and estimated annual purchase volume.
