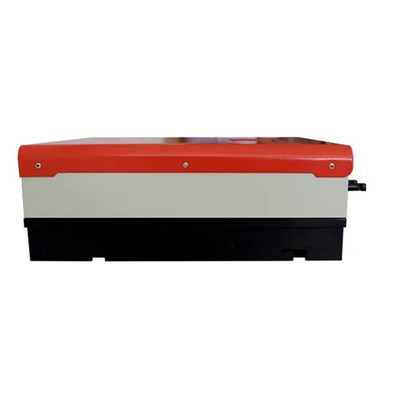

China Off-grid Hybrid Grid Tied Solar Power System Inverter Grid Tied CCTV Grid Tied Inverter

1 piece
MOQ
China Off-grid Hybrid Grid Tied Solar Power System Inverter Grid Tied CCTV Grid Tied Inverter
Features Gallery Product Description Request A Quote
Features
Specifications
Input Voltage: 250v-1000v
Output Voltage: 400v
Output Current: 36A
Output Frequency: 50HZ/60HZ
Output Type: Triple
Size: 485*485*266mm
Type: DC/AC Inverters
Inverter Efficiency: 98%
Certificate: CE TUV
Warranty: 5years
Weight: 35kg
Product Name: Solar Inverter On Grid 25 Kw
Application: Grid Tie Solar Power System
Protection: IP65
Communication: RS485/WIFI/GPRS (optional)
Inverter Type: On-grid Inverter
Color: Normal
Frequency: 50/60 HZ
Cooling: Smart Air Cooling
Maximum PV Array Open Circuit Voltage: 1100v
Controller Type: MPPT Solar Controller
Basic Infomation
Certification: CE TUV
Payment & Shipping Terms
Packaging Details: with individual cartons for each battery or as your request(By Kraft Carton Box Then Onto Pallet)
Supply Ability: 10000000 Piece/Pieces per Month
Product Description
Products Description
Model
RSM10K-B
RSM15K-B
RSM20K-B
RSM25K-B
RSM30K-B
RSM33K-B
DC Input
Max.DC Voltage
1100V
MPPT Voltage Range
250V-1000V
Max. Input Current of Each MPPT
13A
26A/13A
26A
39A
Number of DC Inputs
2
3
4
6
MPPT Number
2
AC Output
Rated Output Power
10KW
15KW
20KW
25KW
30KW
33KW
Max. Active Power
(cos0s1)
11KW
16.5KW
22KW
27.5KW
33KW
36.3KW
Rated Output Voltage
400V (Three Phase)
Operating Voltage Range
400V±20%
Rated Output Current
14A
22A
29A
36A
43.3A
47.6A
Max. Output Current
16A
24A
32A
39.7A
47.6A
Rated Grid Frequency
50Hz/60Hz
Power Factor
0.8(Leading)-0.8(Lagging)
THD
<3%
System
Parameters
Max.Efficiency
98.60%
98.61%
98.63%
98.94%
99.00%
98.80%
European Efficiency
98.30%
98.26%
98.50%
98.26%
Cooling System
Natural Cooling
Smart Air Cooled
Operating Temperature Range
-40°C~+60°C
Protection Level
IP65
Standby Power Consumption
<1W
Topology Structure
Transformerless
Operating Altitude
5000m(Derating above 4000m)
Display
LED Indicator+APP
Communication
RS485 / WiFi / GPRS
Product Paramenters
