Home /Products/Off Grid Solar Inverters/3.5KW 5.5KW 220VAC Off Grid Hybrid Solar Inverter 100A MPPT Solar Charge Controller Can Work Without Battery WIFI Monitor 472*297*129mm

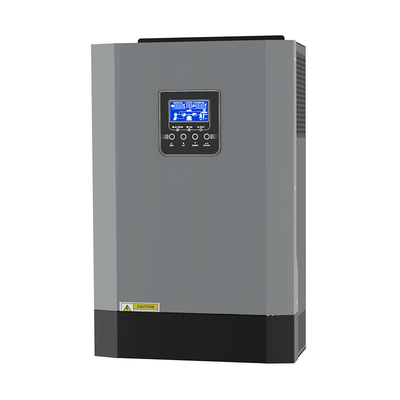

3.5KW 5.5KW 220VAC Off Grid Hybrid Solar Inverter 100A MPPT Solar Charge Controller Can Work Without Battery WIFI Monitor 472*297*129mm

2.0 pieces
MOQ
3.5KW 5.5KW 220VAC Off Grid Hybrid Solar Inverter 100A MPPT Solar Charge Controller Can Work Without Battery WIFI Monitor 472*297*129mm
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: TP-I018
Input Voltage: 220-240
Output Current: 110A
Output Frequency: 50/60Hz
Output Type: Single, Pure Sine Wave
Size: 472*297*129mm
Type: DC/AC Inverters
Inverter Efficiency: 98%
Certificate: CE Rohs
Warranty: 2 Years
Weight: 14kg
Continuous Output Power: 5500W
Maximum Output Power: 11000W
Work Efficiency: 98%
AC Voltage Regulation (Battery Mode): 230VAC±5%
MPPT Range @ Working Voltage: 120-450VDC
MAX PV Array Open Circuit Voltage: 500VDC
Waveform: Pure Sine Wave
Communication Interface: RS485/RS232 (standard) WIFI (optional)
Operating Temperature: 0°C To 55°C
Storage Temperature: -15℃ To 60℃
Basic Infomation
Certification: CE Rohs
Model Number: TP-I018
Payment & Shipping Terms
Packaging Details: carton
Supply Ability: 100000 Piece/Pieces per Month
Product Description
Product Description
Model
MPS-3500H
MPS-5500H
Rated power
3500VA/3500W
5500VA/5500W
Input
Voltage
230VAC
Optional voltage range
170-280VAC (PC) 90-280VAC (household appliances)
Frequency Range
50Hz/60Hz (auto-sensing)
Output
AC Voltage Regulation (Battery Mode)
230VAC±5%
Surge power
7000VA
11000VA
Efficiency (peak) PV to INV
97%
Efficiency (peak) BAT vs INV
94%
Transmission time
10ms (PC) 20ms (household appliances)
Waveform
Pure sine wave
Batteries and AC Chargers
battery voltage
24VDC
48VDC
float voltage
27VDC
54VDC
Overcharge protection
33VDC
63VDC
Maximum charging current
80A
80A
solar power charger
Maximum PV array power
5000W
6000W
MPPT range @ working voltage
120-450VDC
Maximum PV Array Open Circuit Voltage
500VDC
Maximum charging current
110A
Highest efficiency
98%
Physics
Dimensions L*W*H(mm)
472*297*129
Net weight (kg)
13kg
14kg
Communication Interface
RS485/RS232 (standard)                        WIFI (optional)
Operating environment
Humidity
5% to 95% relative humidity (non-condensing)
Operating temperature
0°C to 55°C
Storage temperature
-15℃ to 60℃
Features
Pure sine wave output Output power factor 1.0 Programmable power priority for PV, battery or grid User adjustable charging current and voltage Wide PV input range (120Vdc-500Vdc), 110A MPPT solar charge controller Works without batteries WIFI monitoring function (optional) Anti-aging Kit for Harsh Environments (Optional) LCD remote control with 10m cable (optional) Photovoltaic and electricity complementary For use with lithium batteries
Product Details
Company Profile
Exhibition
Package & Shipping
Contact us
FAQ
Q: Are you a factory or a trading company? A: We are factory and trading company, over 6 years experience, welcome to visit. Q: Is sample order acceptable? A:Yes, for all batteries or battery packs, sample orders for testing quality is reasonable and acceptable. Q: Is your battery quality approved? A: Yes, we guarantee that all cells are 100% original from various big brands.And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection before shipment. Q: What is your lead time if I placed an order? A: For all products in stock, our lead time is within 2 working days after payment received. The sample needs 5-10 days, mass production time needs 3-5weeks, it depends on order quantity. Q: Is it OK to print my logo on the product? A: Sure, please inform us formally before our production and confirm the design firstly based on our sample. Q:How is your technical support? A: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime,our engineer will also go to oversea help our customers if necessary. Q: What should I do, if I don't have export experience or I have no cargo agent? A: We have reliable forwarder agent and cooperating shipping company which can ship products to you by sea.
