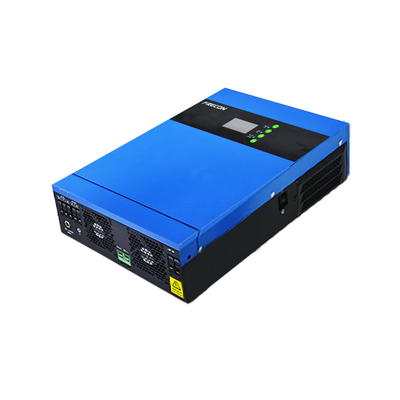

Solar Home Off Grid Inverter 3KW / 5KW For Power Supply 110*309*415

1 piece
MOQ
Solar Home Off Grid Inverter 3KW / 5KW For Power Supply 110*309*415
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: SP500-5KW-48H
Input Voltage: 220/230VAC
Output Voltage: 230VAC
Output Current: 60A
Output Frequency: 50/60HZ
Output Type: Single
Size: 110*309*415
Type: DC/AC Inverters
Inverter Efficiency: 94%
Certificate: CE
Warranty: 24month
Weight: 10KG
Product Name: Hybrid Solar Off Grid Inverter
Battery Voltage: 48VDC
Over Charge Protection: 63VDC
Battery Maximum Charging Current: 60A
MPPT Range @ Operating Voltage: 120~450VDC
Solar Inverter Maximum Charging Current: 80A
Communication Interface: USB/RS485/WiFi
Humidity: 5%~95% Relative Humidity(non-condensing)
Operating Temperature: -10°C~50°C
Storage Temperature: -15°C~60°C
Basic Infomation
Certification: CE
Model Number: SP500-5KW-48H
Payment & Shipping Terms
Product Description


SP500 series all in one solar system is the perfect for off grid and backup power for homes, small business, and it is easy to
install system that provides efficient power globally. Transformerless design provides reliable power conversion in compact size,and inverter running without battery also can help to reduce cost in solar power system.
Model
SP500-3KW-24L
SP500-3KW-24H
SP500-5KW-48H
Rated power
3000VA
3000VA
5000VA
AC input
Rated input voltage
220/230VAC
Operating voltage range
170~280VAC(For personal computers) : 90~280VAC(For home appications)
Frequency range
50Hz/60Hz(Auto sensing)
Output
Rated output voltage(VAC)
230VAC
Surge power
6000VA
6000VA
10000VA
Effciency(peak)
94%
Transfer time
10ms(For personal computers) ; 20ms(For home applications)
Battery & AC charger
Battery voltage
24VDC
48VDC
Floating charge voltage
27VDC
54VDC
Over charge protection
33VDC
63VDC
Maximum charging current
80A
60A
Solar charger
Maximum PV array power
2000W
4000W
6000W
MPPT range @ operating voltage
30~100VDC
120~450VDC
120~450VDC
Maximum PV array open circuit voltage
100VDC
495VDC
495VDC
Maximum charging current
80A
Physical
Dimension D*W*H(MM
103*280*378
110*309*355
110*309*415
Net weight(KG)
6.8
7.3
9.6
Communication interface
USB/RS485/WiFi
Operating environment
Humidity
5%~95% Relative humidity(non-condensing)
Operating temperature
-10°C~50°C
Storage temperature
-15°C~60°C
FRECON is an enterprise accredited by the double soft in Shenzhen city.
The National High-tech Enterprise
37 software copyrights and utility patents
12 years experience on frequency inverter, solar pumping inverter, off grid inverter and control system design
5 Service centers and 12 branches in China
Distribution network and service center cover 40 countries over the world
Products' power range covers 0.2KW~1MW
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample to test with reasonable charges. We can send the sample to you by express like DHL or UPS,normally you can receive the sample in one week.

Q: What is your terms of payment ?
A:100% in advance . Welcome pay by Trade Assurance through Alibaba so your payment can get guarantee from Alibaba company. L/C and O/A would be possible for regular customers.

Q: What is your terms of packing?
A:Generally, we use carton box pack. reasonable special packing requirements from customers are acceptable for us.

Q. Do you test all your goods before delivery?
A: Yes, 100% test before delivery

Q: How long is your delivery time?
A: Generally it would be 5-10 days if the goods are in stock. or 15-20 days if the goods are not in stock, it is according to
quantity. we have much experience supply goods to big customer, so don't worry about the delivery time.
With years of export experience along with excellent quality, advanced services and competitive prices, Frecon Electric has won numerous customers' trust and support.
