Home /Products/Lifepo4 Lithium Battery/Yes 48V 100AH ​​Power Wall LiFePO4 Lithium Ion Battery For ESS Energy Storage System

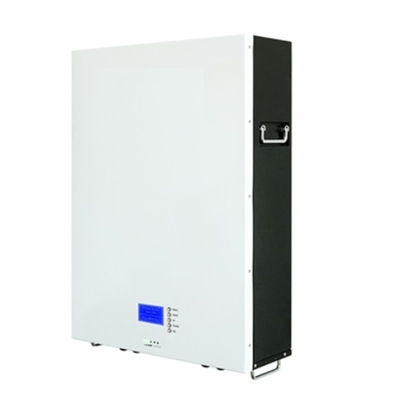

Yes 48V 100AH ​​Power Wall LiFePO4 Lithium Ion Battery For ESS Energy Storage System

1 Piece
MOQ
$1,080.00(1 - 99 Pieces) $1,050.00(>=100 Pieces)
Price
Yes 48V 100AH ​​Power Wall LiFePO4 Lithium Ion Battery For ESS Energy Storage System
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: LP-48100
Voltage: 48V
Capacity: 100Ah
Cycle Life: >5000 Cycles
Warranty: 5 Years, 5years
Status: China Battery Industry Access Enterprise
No Memory Effect: Yes
Maintenance Type: Free
Shipping: By Express, By Air, By Sea
Type: LifePo4
Certification: CE, UN38.3/MSDS/CE/ROHS
Application: Toys, Power Tools, Home Appliances, BOATS, Golf Carts, SUBMARINES, Electric Folklifts, Electric Vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
Weight: 50kg
Basic Infomation
Certification: CE, UN38.3/MSDS/CE/ROHS
Model Number: LP-48100
Payment & Shipping Terms
Packaging Details: 1) plywood,carton 2) Packaging also can be made by customers requirements
Supply Ability: 50000 Piece/Pieces per Month
Product Description

48V 100AH Power wall LiFePO4 lithium ion battery for ESS Energy Storage System

Item
General Parameter
Remark
Combination method
15S2P
Rated Capacity
100Ah
Standard discharge after Standard charge
Factory Voltage
48.5V-49.5V(40-60%)
Mean Operation Voltage
Discharge Cut-off Voltage
37.5-42V
Charging Voltage
54.0V
Internal Impedance
≤50mΩ
Internal resistance measured at AC 1KHZ after 50% charge
Standard charge current
20A
Charge time : Approx 6 h
Limiting charge current
20A
Standard discharge current
20A
Max Continuous Charge Current
100A
Max Continuous Discharge Current
100A
100A when 0ºC>T≥-10ºC
50A when -10ºC>T≥-20ºC
Operation Temperature Range
Charge: 0~45℃
60±25%R.H.
Bare Cell
Discharge: -20~55℃
Storage Temperature Range
-10~35℃
Less than 12 months
-10~45℃
Less than 3 months
-20~65℃
Less than 7 day
Dimensions
650*485*180 mm
Weight
50kg

Applications

1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric
bicycle
--LED Backup / Engine Starting Battery,etc.
